20-Gallon Galley Water Tank (Fresh/Grey)
EMPTY DOM REMOVE PROTECTOR

GoCode

20-Gallon Galley Water Tank (Fresh/Grey)

NOT A MEMBER YET?
  • Add Products to Cart to Reveal the Lower Prices Members Pay
  • Click the Green Button in cart to Become a Member & Save at Checkout
  • Members: See exact lower prices on every product storewide

MSRP:

$230.00
EMPTY DOM REMOVE PROTECTOR
EMPTY DOM REMOVE PROTECTOR
Description from the Brand

About the Product

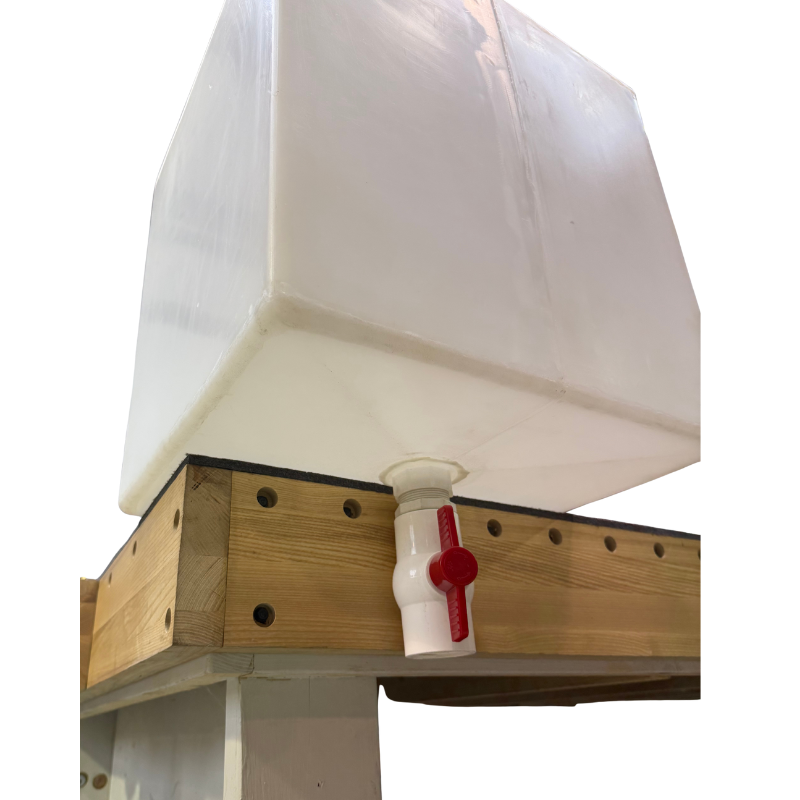

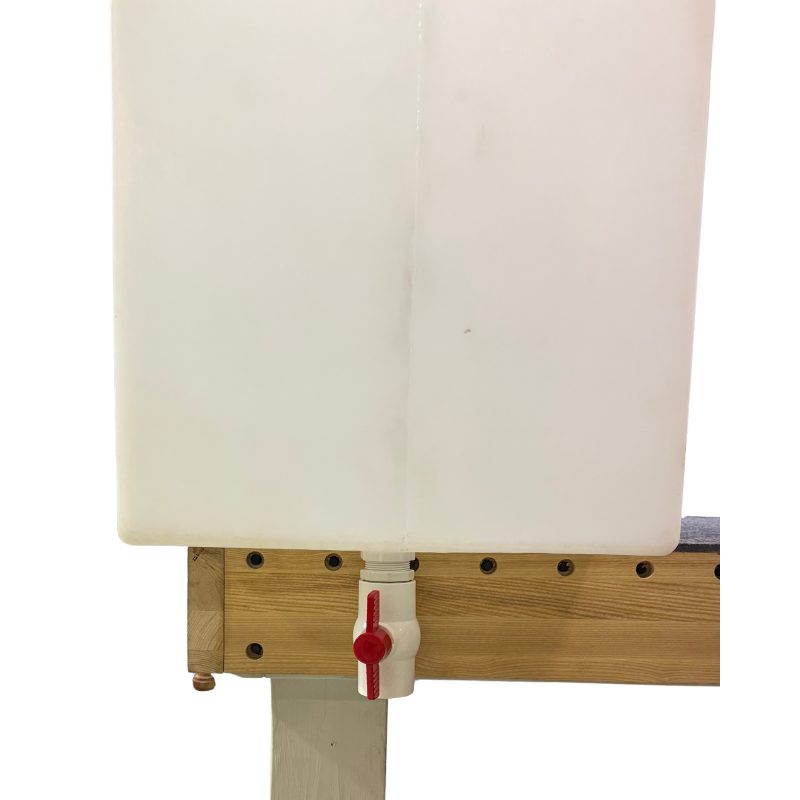

Fits seamlessly into tight spaces without sacrificing interior room. Compact box shape works in galley cabinets, bench seats, or custom storage cavities. Use it as a fresh water tank or a grey water tank. TEi lists it as both a potable water tank and a waste holding tank. Drains straight through your subfloor with a ball valve or connects to an undermount tank for additional storage.

Features

Specifications

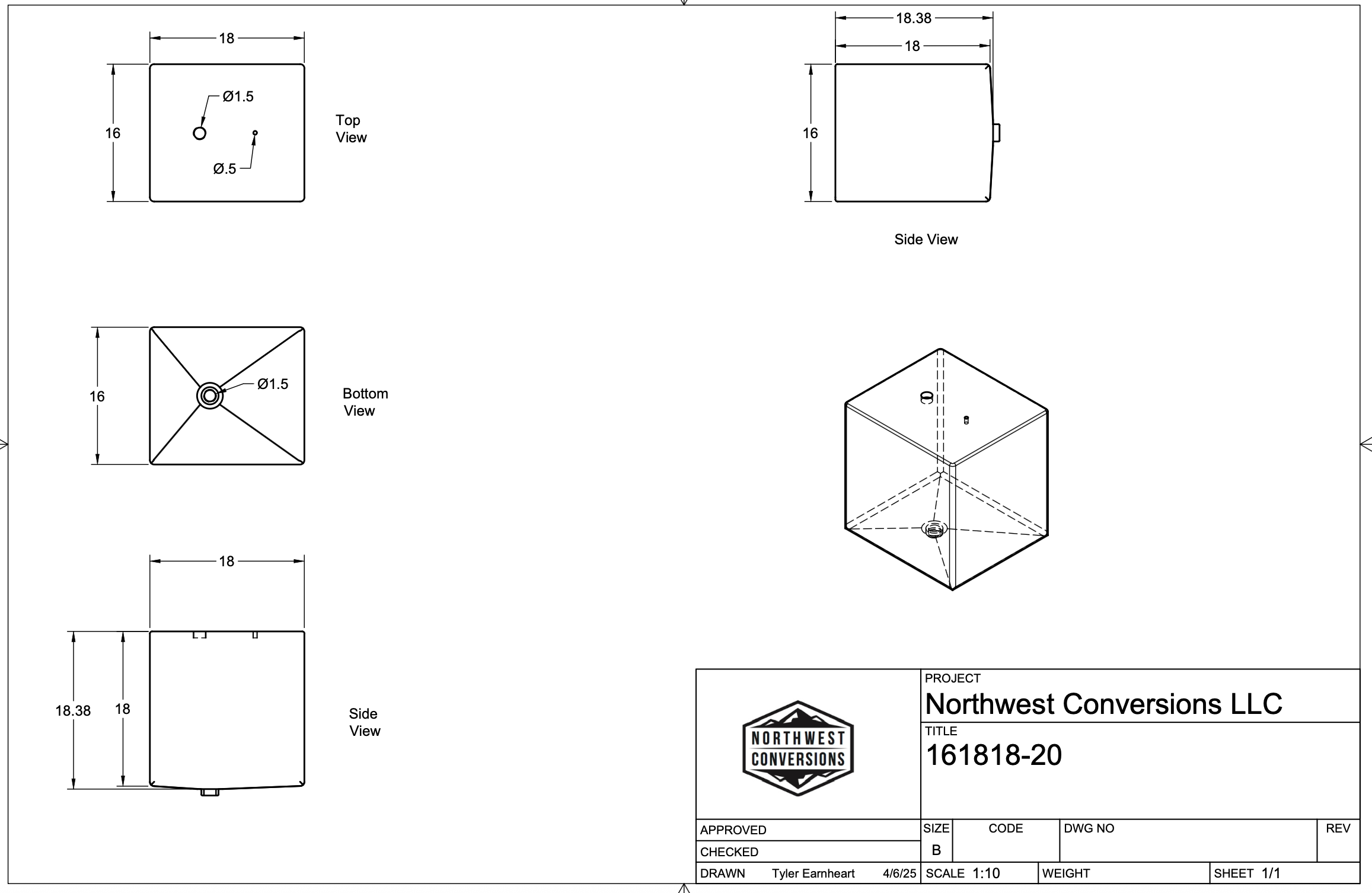

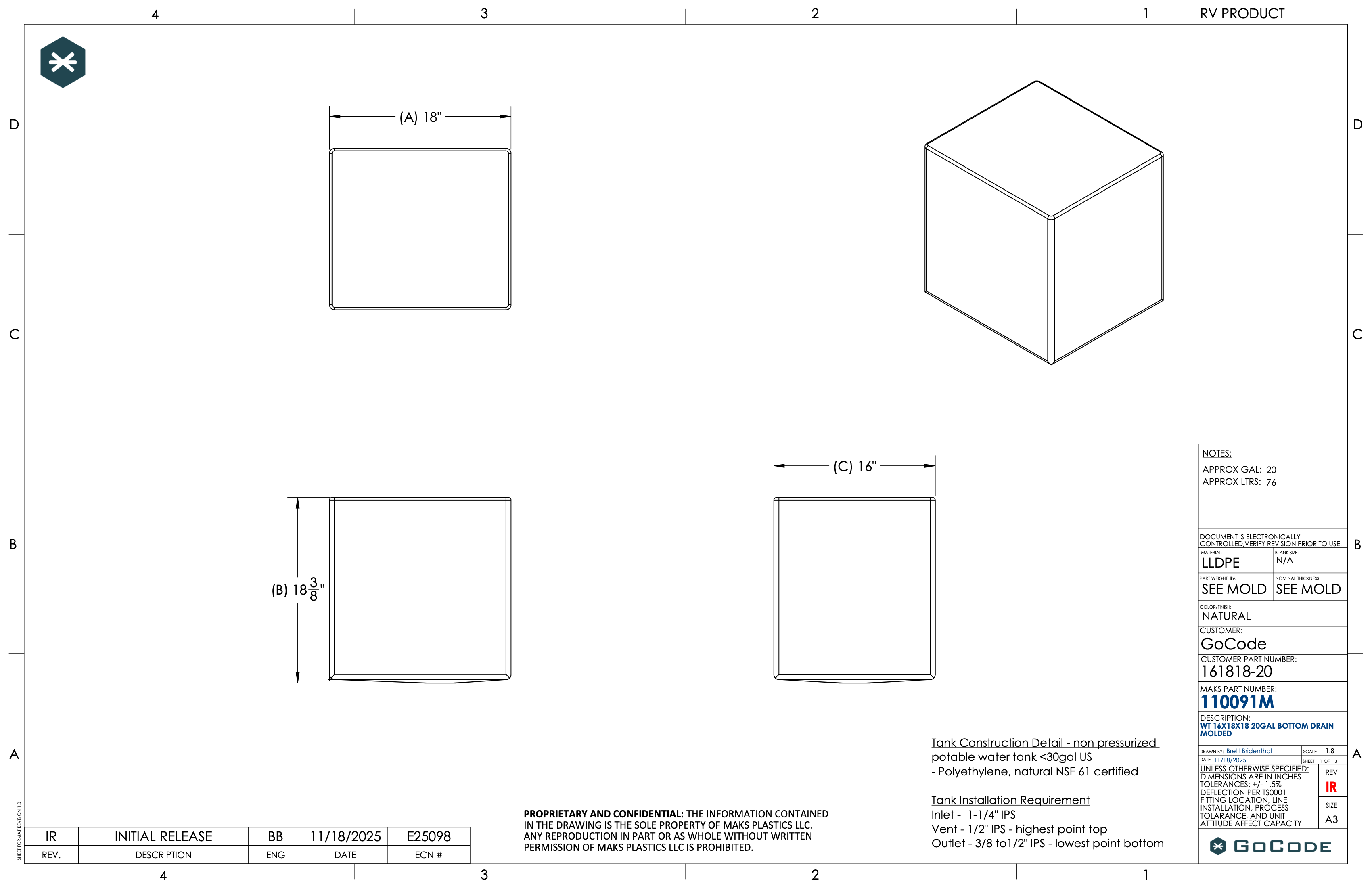

  • Nominal dimensions: 18" L x 16" W x 18.375" H
    • Actual dimensions may vary up to 1.5% each.
  • Capacity: 20 gallons
  • Dry Weight: 16 lbs
  • Filled Weight: 183 lbs
  • Recommended Sensor: KUS S5U-17
  • Recommended Heating Pad: Facon CW-T1218
  • Not designed for pressurized systems, must be vented

Materials & Certifications

  • BPA-free, food-grade polyethylene
  • Made in the USA
  • TEi listed and RVIA approved
    • TEi listed to IAPMO TS 4 for fresh water
    • TEi listed to IAPMO TS 2 and CSA B45.6 for grey water (waste holding)

cULus CertifiedRVIA Certified

What's Included

  • Water Tank
  • (x2) Adjustable straps
  • (x4) Mounting brackets

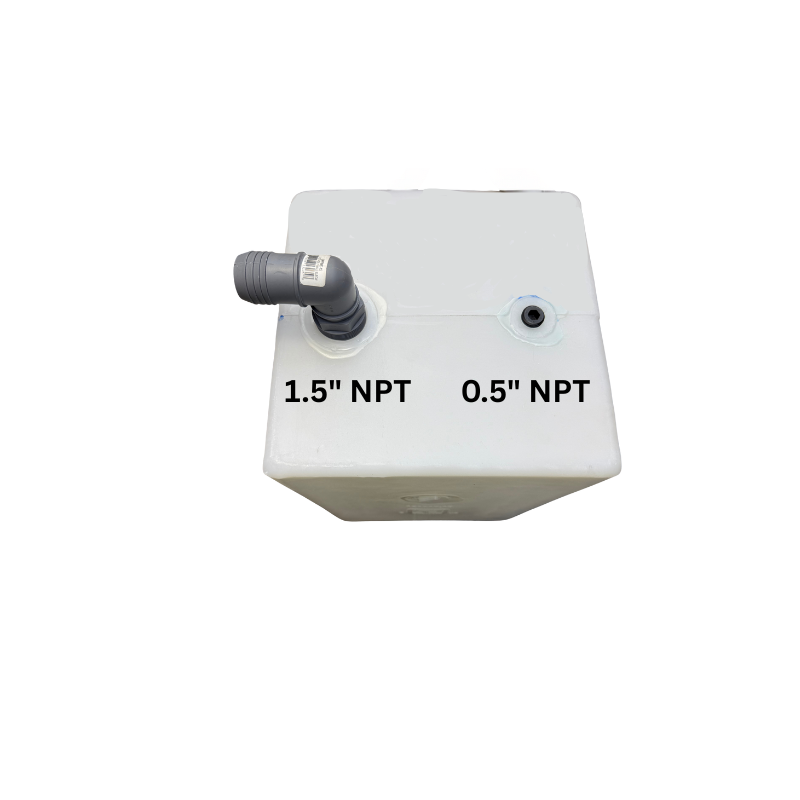

Ports & Plumbing

  • 1/2" NPT fittings, pre-installed

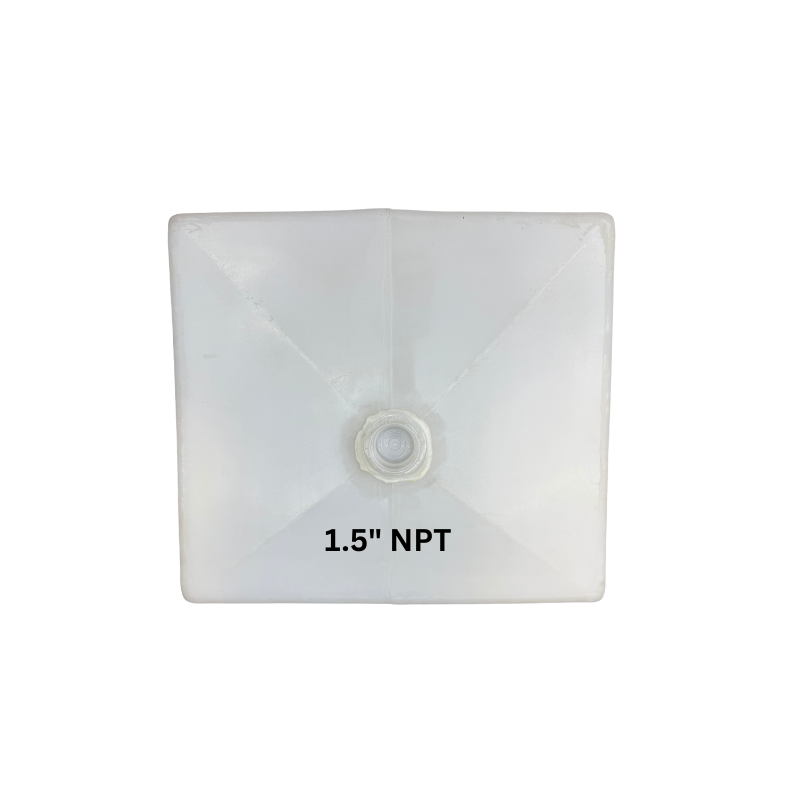

  • 1.5" NPT fittings, pre-installed

Shipping & Lead Time

  • Ships in 1-2 business days

Note: Despite great care taken during manufacturing and fulfillment, plastic tanks can become dirty and/or scuffed in transit. This does not constitute a damaged tank. Plastic tanks can also become slightly warped, especially on the flat surfaces. This is normal and does not render the tank defective. Maintaining a completely straight/flat surface on a rotationally molded part is not always possible, but we make every effort to keep surfaces within a 1.5 degree tolerance.

Compatibility

  • Compatible with any van, truck, or RV platform where dimensions allow, including Sprinter, Transit, and ProMaster builds

Resources

Need Help? Questions about fitment or your build? Contact us, we're happy to help.
