28-Gallon Promaster Wheel Well Water Tank - Left (PM-L-28)

About the Product

Designed specifically for the driver side of the Ram ProMaster, this tank positions the bulk of the capacity to the left toward the rear of the van, making it ideal for builds with galley or cabinet systems on the driver side.

Features

Specifications

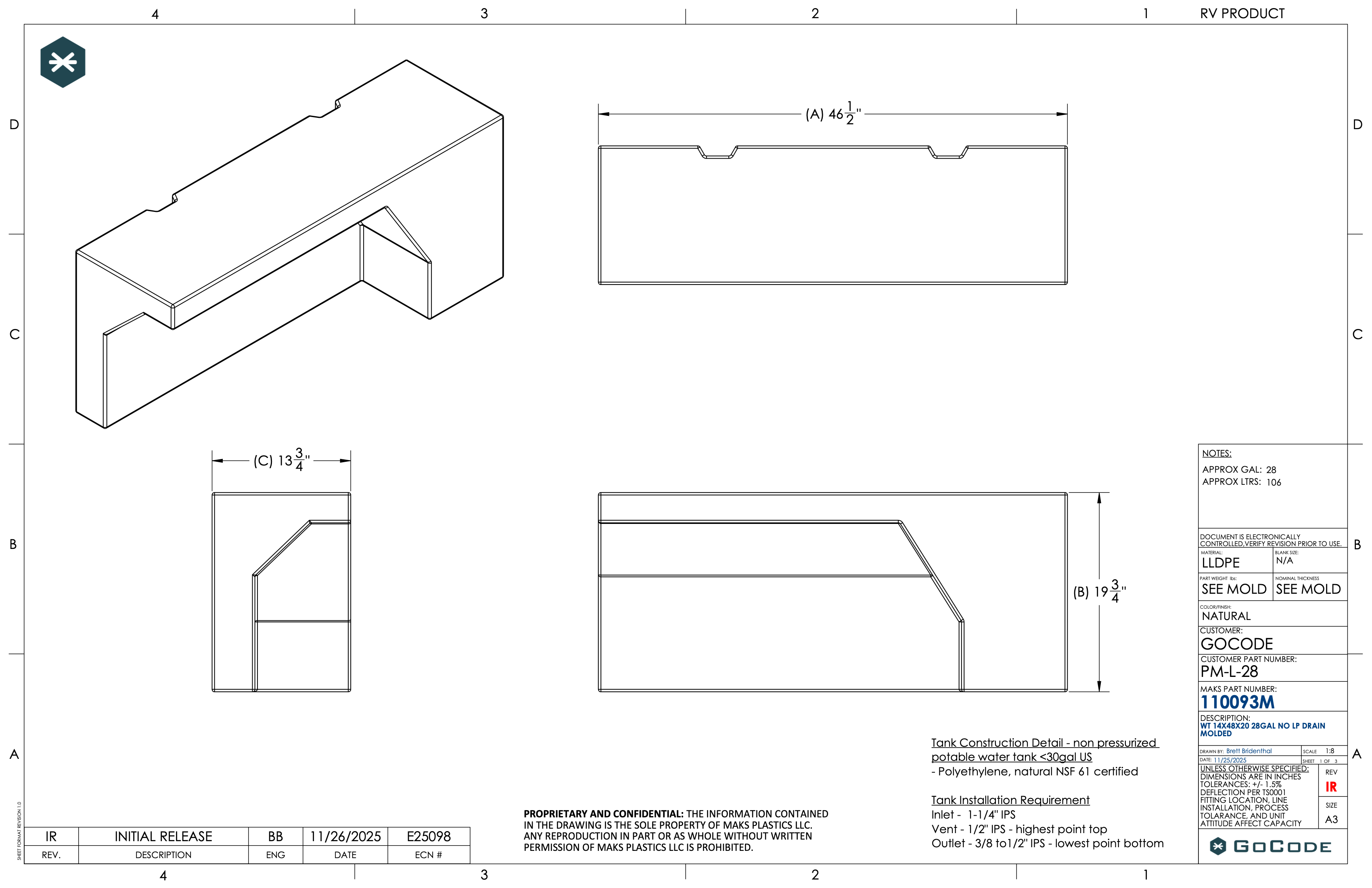

• Nominal dimensions: 46.5" L x 13.75" W x 19.75" H
  • Actual dimensions may vary up to 1.5% each.
• Capacity: 28 gallons
• Weight: 32 lbs

Materials & Certifications

• BPA-free, food-grade plastic
• Made in the USA

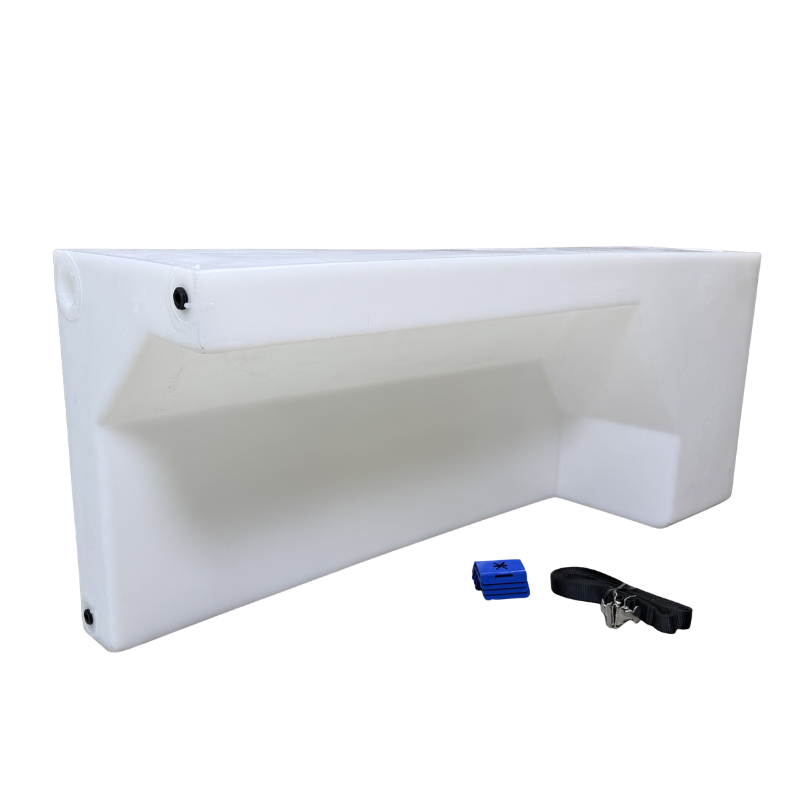

What's Included

• Water Tank

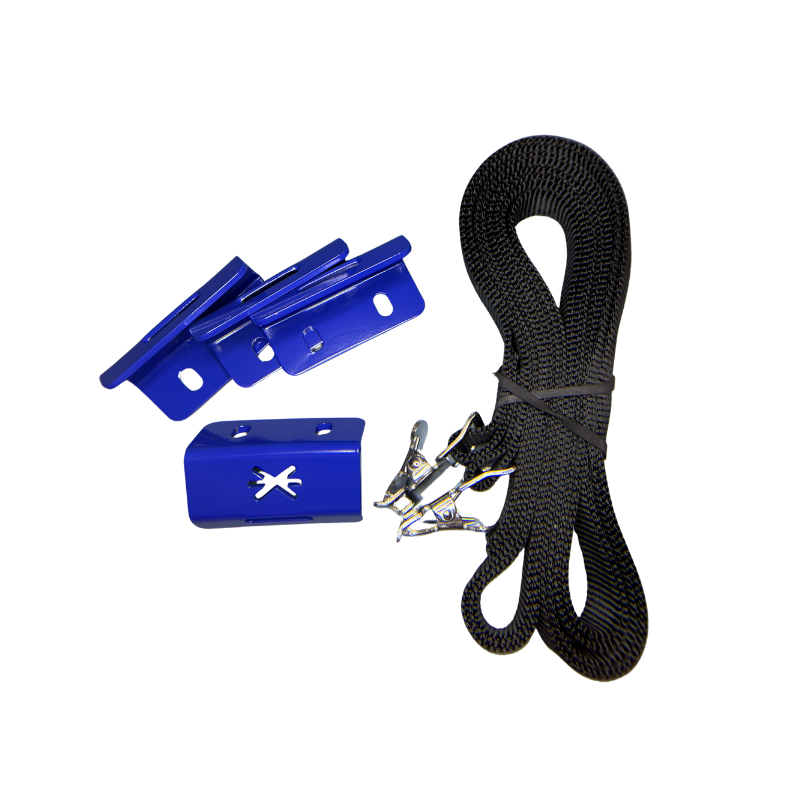

• (x2) Adjustable straps
• (x4) Mounting brackets

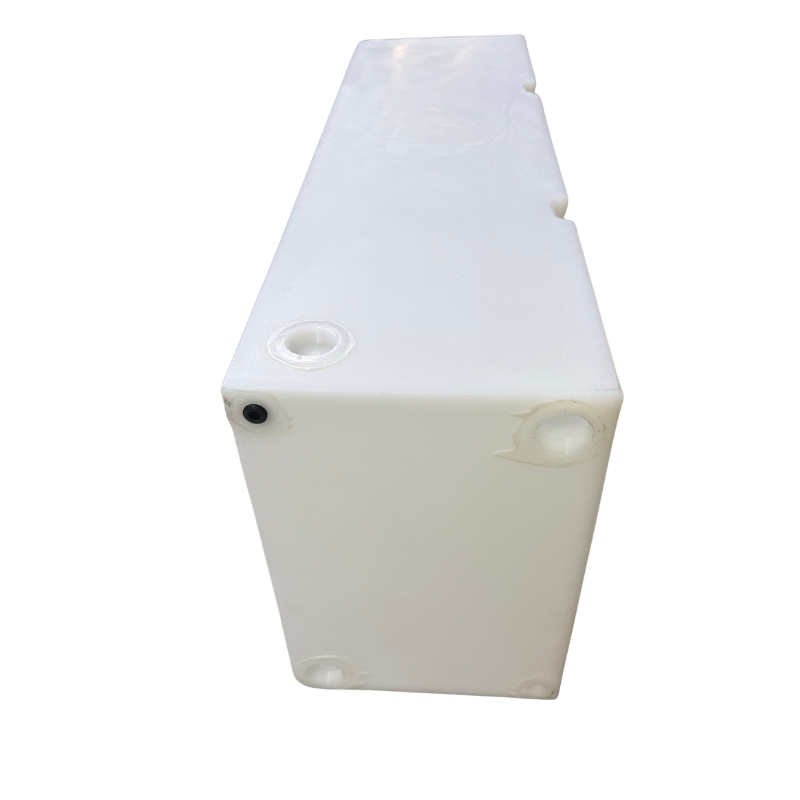

Ports & Plumbing

• (2) 1.5" NPT ports on either end, pre-marked, drill out to use
• (2) 1/2" NPT ports on either end, open and ready to use
• (1) 1.5" NPT port on top for fill or level sensor, pre-marked, drill out to use
• Not designed for pressurized systems, must be vented

Shipping & Lead Time

• Ships in 1-2 business days

Note: Despite great care taken during manufacturing and fulfillment, plastic tanks can become dirty and/or scuffed in transit. This does not constitute a damaged tank. Plastic tanks can also become slightly warped, especially on the flat surfaces. This is normal and does not render the tank defective. Maintaining a completely straight/flat surface on a rotationally molded part is not always possible, but we make every effort to keep surfaces within a 1.5 degree tolerance.

Compatibility

• ProMaster optimized for the driver side wheel well
• Sprinter & Transit compatible with the driver side wheel well with a gap at the top of the well, ideal for insulation or sound deadening
• Compatible with other vehicles such as box trucks and trailers where dimensions allow
