28-Gallon Promaster Wheel Well Water Tank - Right (PM-R-28)

About the Product

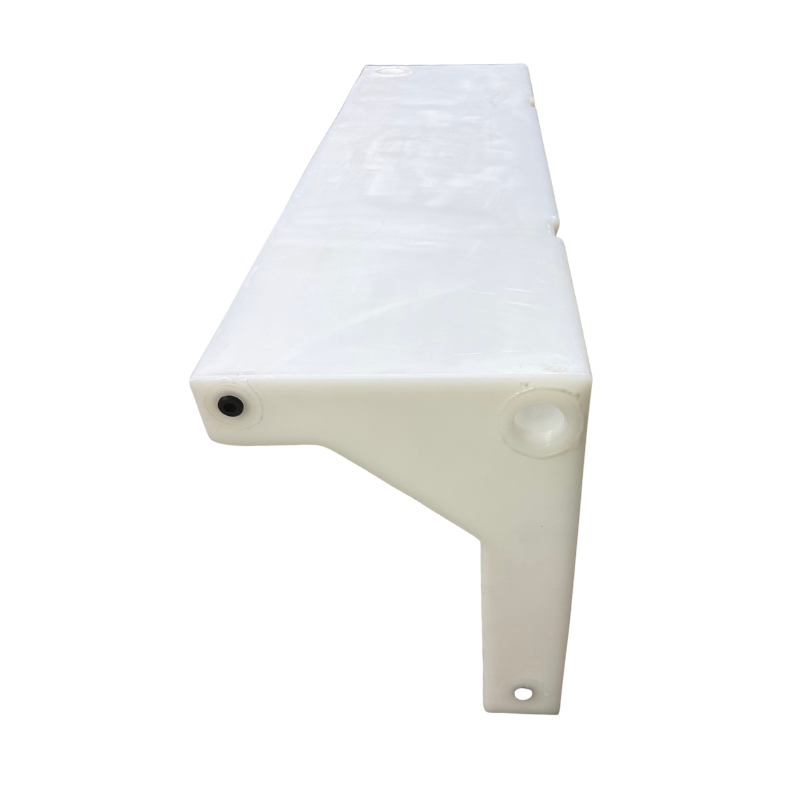

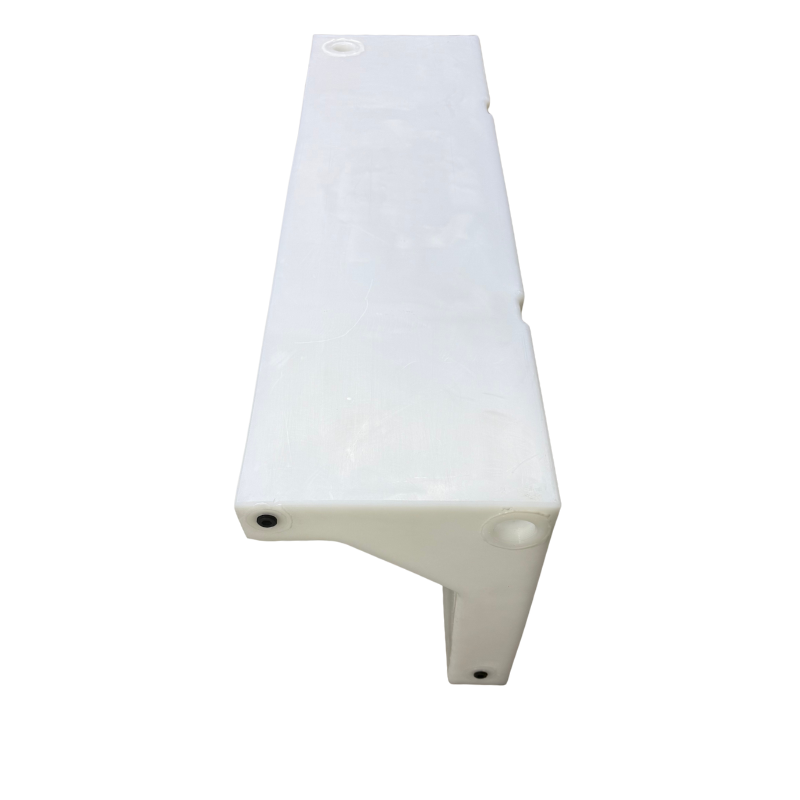

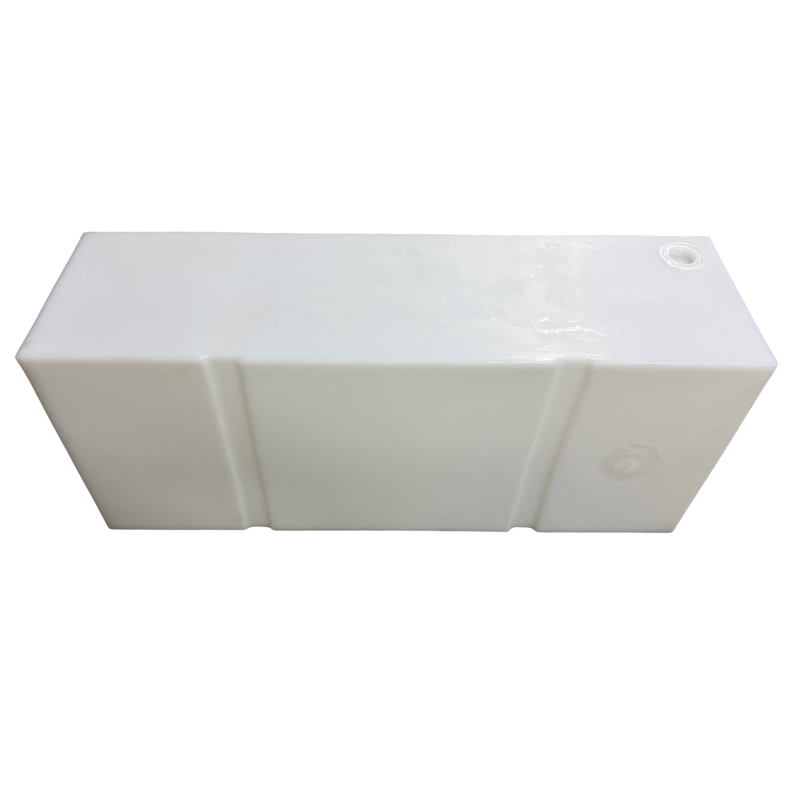

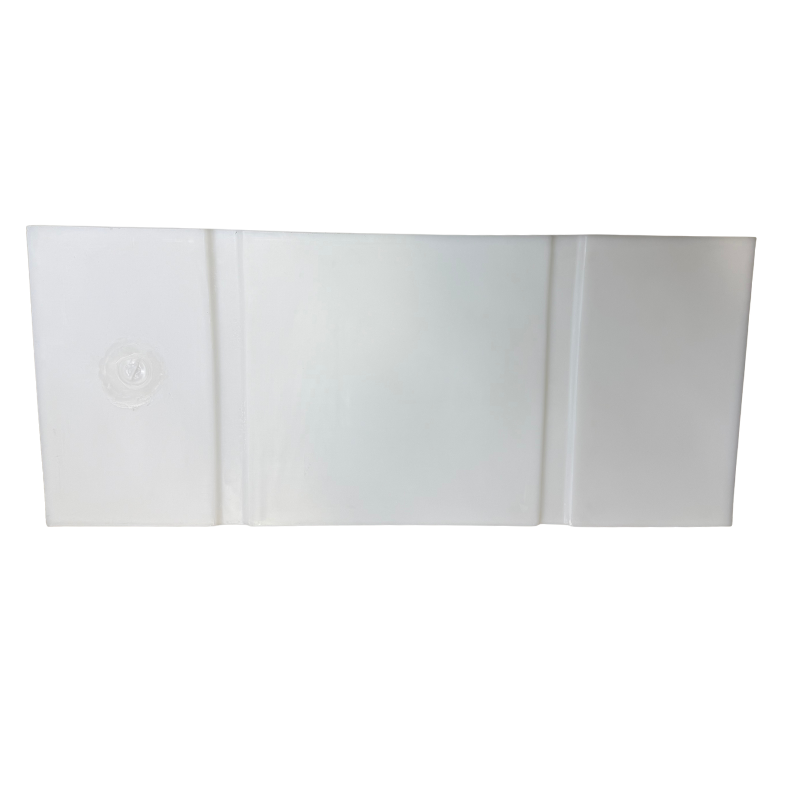

Designed specifically for the passenger side of the Ram ProMaster, this tank contours directly over the right-side wheel housing, making it ideal for builds with galley or cabinet systems on the passenger side.

Features

Specifications

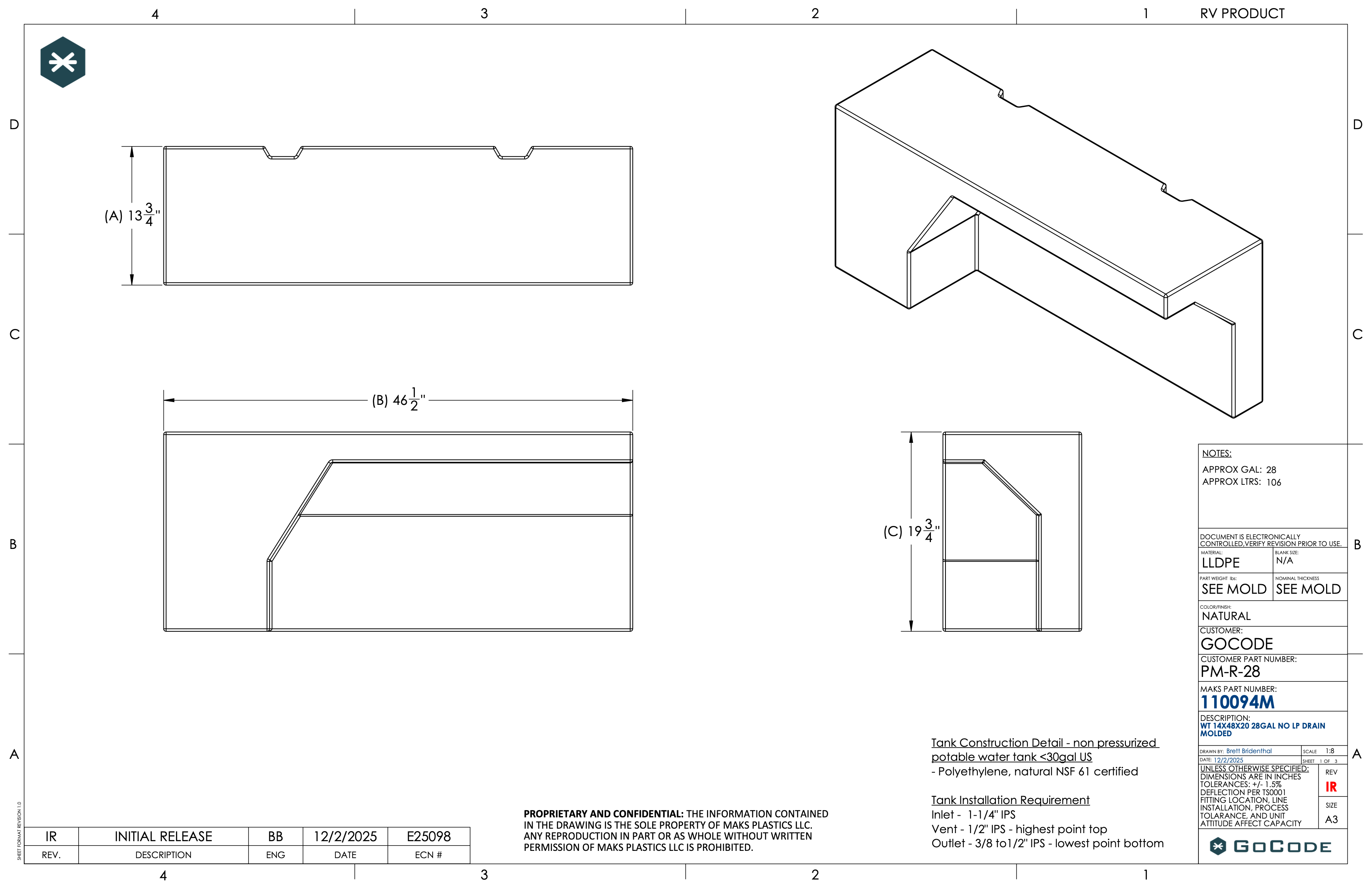

• Nominal dimensions: 46.5" L x 13.75" W x 19.75" H
  • Actual dimensions may vary up to 1.5% each.
• Capacity: 28 gallons
• Weight: 32 lbs

Materials & Certifications

• BPA-free, food-grade plastic
• Made in the USA

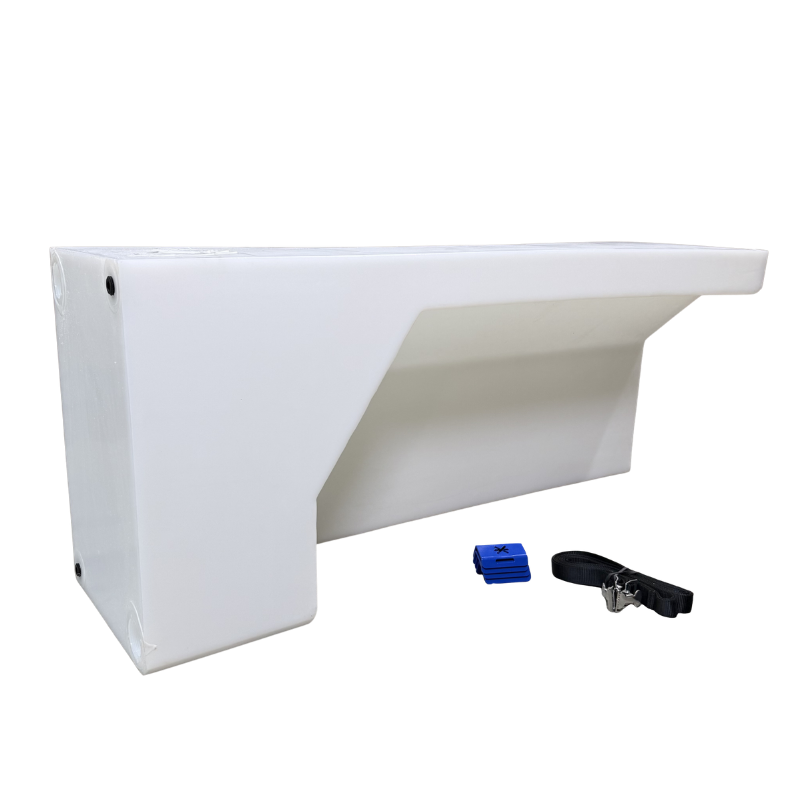

What's Included

• Water Tank

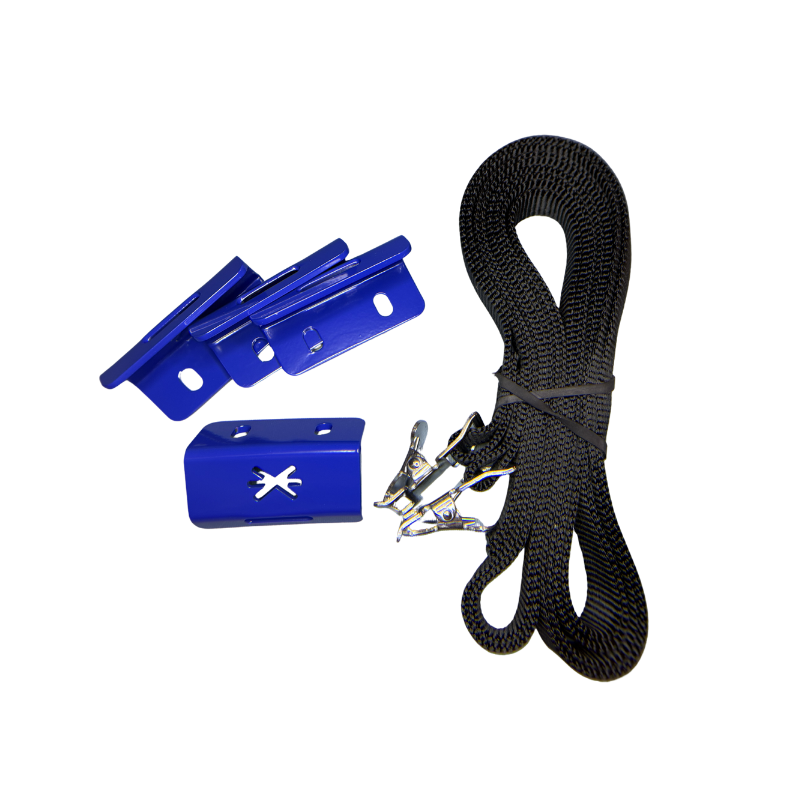

• (x2) Adjustable straps
• (x4) Mounting brackets

Ports & Plumbing

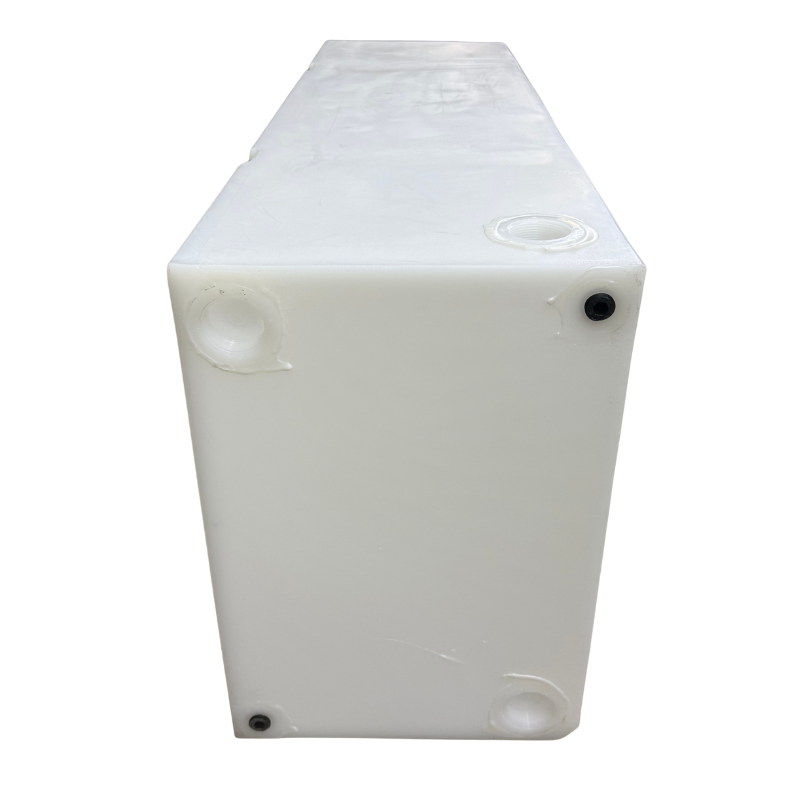

• (2) 1.5" NPT ports on either end, pre-marked, drill out to use
• (2) 1/2" NPT ports on either end, open and ready to use
• (1) 1.5" NPT port on top for fill or level sensor, pre-marked, drill out to use
• Not designed for pressurized systems, must be vented

Shipping & Lead Time

• Ships in 1-2 business days

Note: Despite great care taken during manufacturing and fulfillment, plastic tanks can become dirty and/or scuffed in transit. This does not constitute a damaged tank. Plastic tanks can also become slightly warped, especially on the flat surfaces. This is normal and does not render the tank defective. Maintaining a completely straight/flat surface on a rotationally molded part is not always possible, but we make every effort to keep surfaces within a 1.5 degree tolerance.

Compatibility

• ProMaster optimized for the passenger side wheel well
• Sprinter & Transit compatible with the passenger side wheel well with a gap at the top of the well, ideal for insulation or sound deadening
• Compatible with other vehicles such as box trucks, trailers, and tiny homes where dimensions allow
