Camper Van Expandable Elevator Bed

- $400 flat rate shipping to the Lower 48 states. Free warehouse pickup available.

- Download installation instructions [PDF]

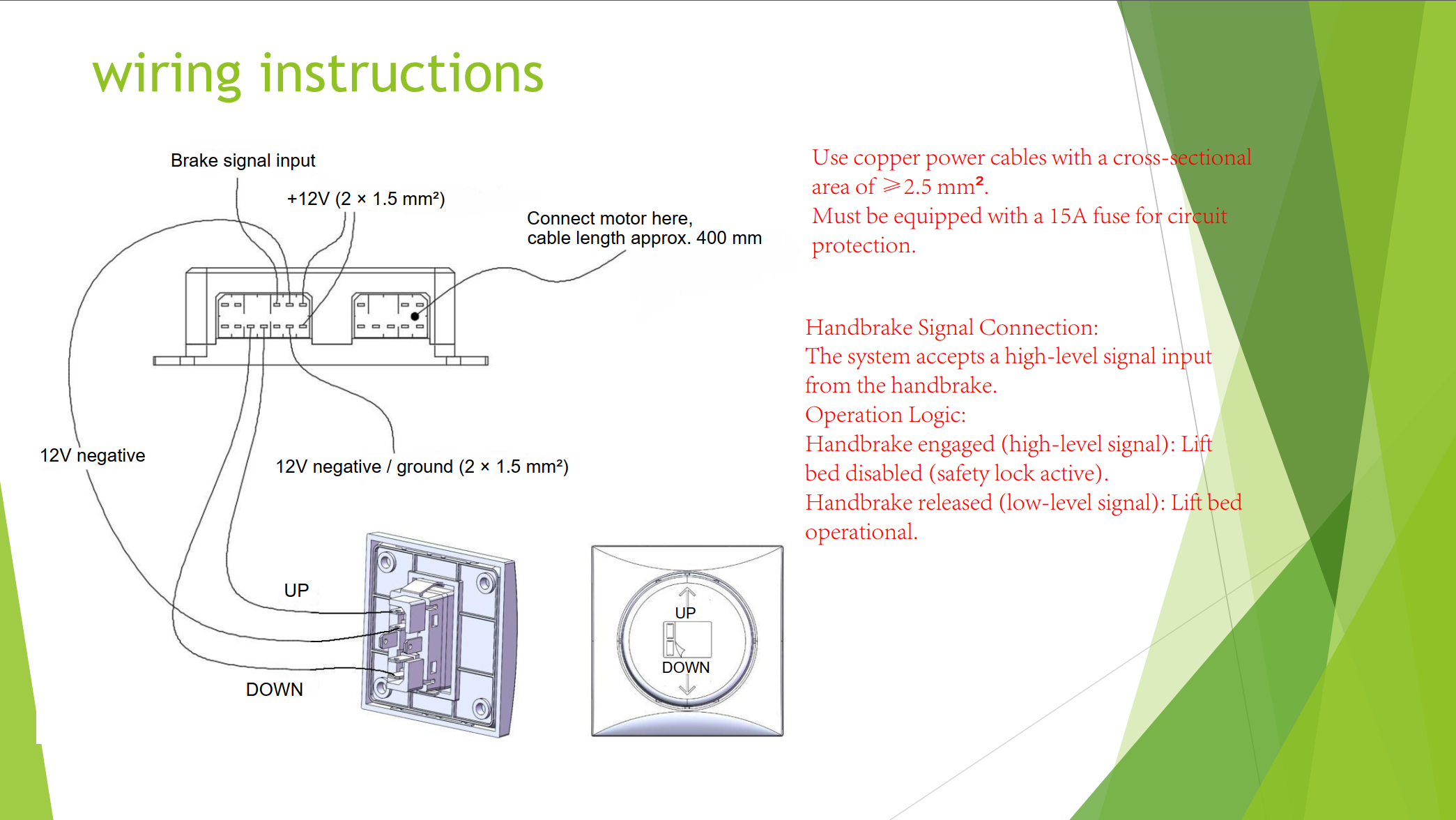

- Download wiring instructions [PDF]

TEC Features

Expandable Sleep Platform
Retracted size is 63” x 55”, perfect for daytime space-saving. Expands to a full 77” x 55” sleeping surface in seconds—plenty of room for two adults to sleep comfortably, even in smaller vans.

Ultra-Low Profile Design
With a total thickness of just 80mm (without slats and mattress), the frame preserves critical headroom and maintains an open feel in your van, whether stowed or deployed.

Electric Lift System
The system uses an electric motor for upward and downward travel, operated by switch. Bed extension and retraction are adjusted manually.

North-South Sleeping in Compact Vans
Specifically engineered to fit Sprinter, Transit, Promaster, especially short-wheelbase vans—no side flares needed. Sleep front-to-back with a full-length bed.

No More Daily Bed-Making
Your bedding stays in place—just lift the bed during the day and lower it at night. No need to pack up your sheets and pillows every morning.

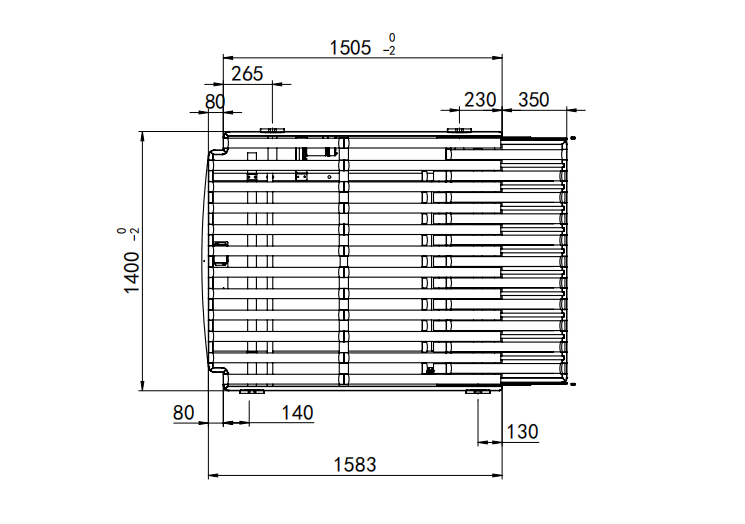

TEC Specs

• Retracted Dimensions: 63” x 55”

• Expanded Dimensions: 77” x 55”

• Frame Thickness: 80mm (approx. 3.1") without slats/mattress

• Frame Material: 3” powder-coated aluminum

• Included: 2” bi-fold mattress

• Lift System: Electric motor with manual backup release

• Extension System: Manually adjusted

• Compatibility: Sprinter (144/170), Transit, Promaster, and other van platforms

• Weight: 30kg (66 lbs)

Why Choose the Tec Vanlife Expandable Elevator Bed?

We’ve taken every inch of your van’s limited space into account. This bed system is not only engineered for daily use, but for total convenience and comfort. From its whisper-quiet lift system to its clever expanding platform, everything is designed to maximize your space without sacrificing sleep quality.

How It’s Made

Built from thick, precision-cut aluminum and powder-coated for long-lasting protection, this bed system is designed to thrive in the demanding environments of overland travel. Its minimal profile doesn't just look sleek—it also ensures optimal space utilization and long-term durability.

Additional Features

• Manual Emergency Release – Ensures functionality even during electrical issues

• Bi-Fold Mattress Included – Folds with the platform to simplify use

• Easy Installation – Pre-configured mounting points for fast setup

• Expandable Rails – Smooth slide system ensures stable extension and retraction

FAQ

1. Can it support my weight while suspended?

No, the belts are only supposed to hold the weight of the bed frame itself. it needs to be lowered to a secondary support platform like cabinets first prior to supporting the weight of sleepers.

Important Installation Warning

The mounting brackets must be installed perfectly level from side to side. If one side is mounted higher than the other, that side will reach the bed’s fully raised position first while the opposite side continues to travel. This can cause the bed to tilt and place excessive strain on the lifting system, frame, and mounting points.

Specifications
