Lithium Battery Power

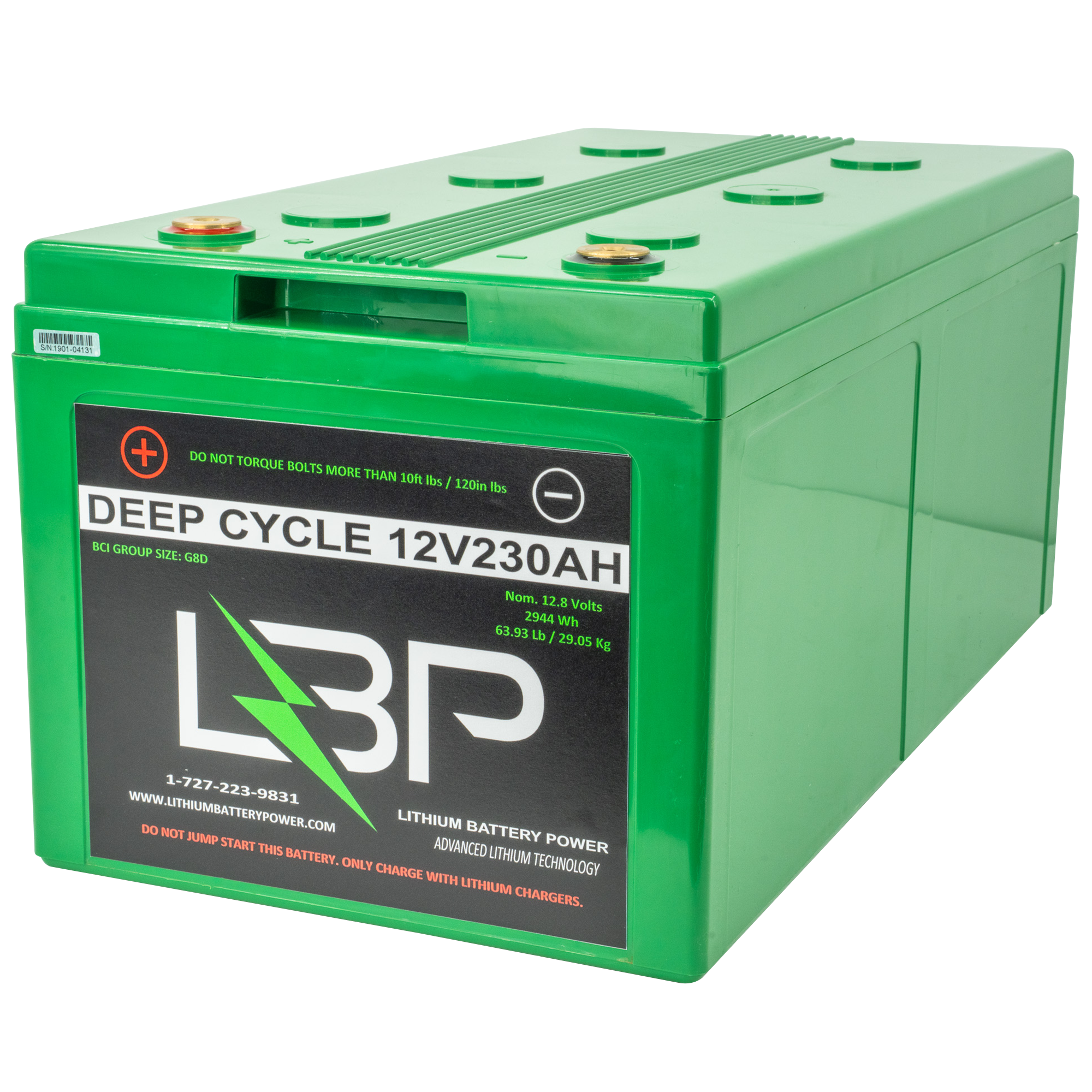

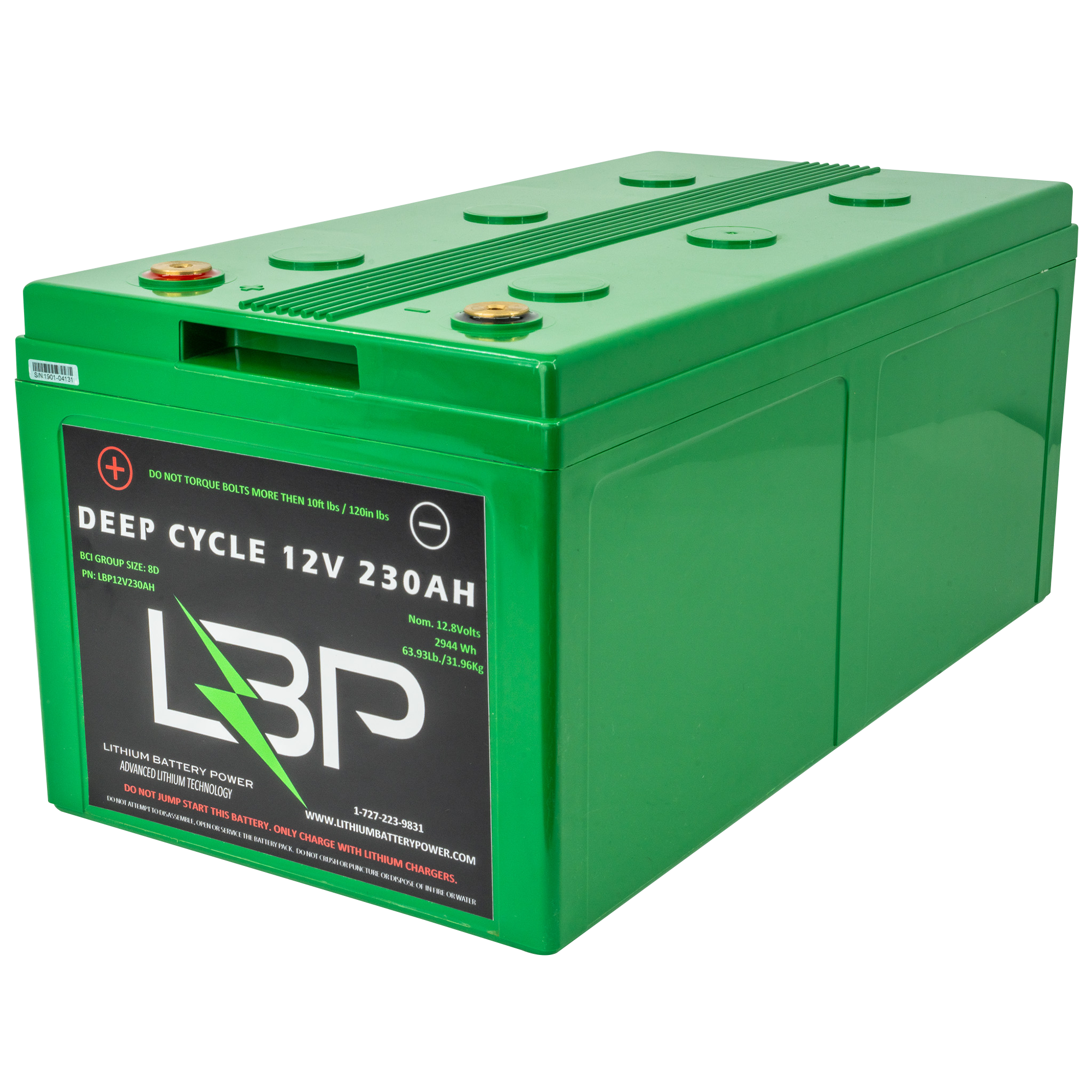

LBP 12V 230Ah Lithium Battery
MSRP:
$2,450.00
Member Price:
$2,082.50
Not a Member Yet? Join & Get Access to our member's only lower prices for just $4/mo. No Commitment, Cancel anytime. After you are a member savings codes generate automatically for all products at checkout.
Description from the Brand
The LBP 12V 230Ah is a deep cycle lithium iron phosphate battery for jobs that need a large store of energy and a steady draw over a long period. A built in battery management system balances the cells and cuts the pack off before overcharge, over discharge, short circuit or a temperature outside its safe range. It weighs 64 pounds and fits a Group 8D tray.
Specification
| Nominal voltage | 12.8V |
| Rated capacity | 230Ah |
| Charge voltage, full charge | 14.4V |
| Discharge cut-off voltage | 10V |
| Recommended charging current | 25A |
| Over-current protection, charging | 54A |
| Max continuous discharge current | 110A |
| Over-current, discharging | 120A |
| Pulse current | 300A for 3 seconds |
| Short circuit protection | Yes |
| Weight | 64 lbs |
| Dimensions | 19.5in x 10.2in x 9.1in (Group 8D) |
| Charging protection, high temperature | Cuts out at 113°F, resumes at 91°F |
| Charging protection, low temperature | Cuts out at 32°F, resumes at 41°F |
| Discharging protection, high temperature | Cuts out at 131°F, resumes at 113°F |
| Discharging protection, low temperature | Cuts out at 0°F, resumes at 18°F |
