Lithium Battery Power

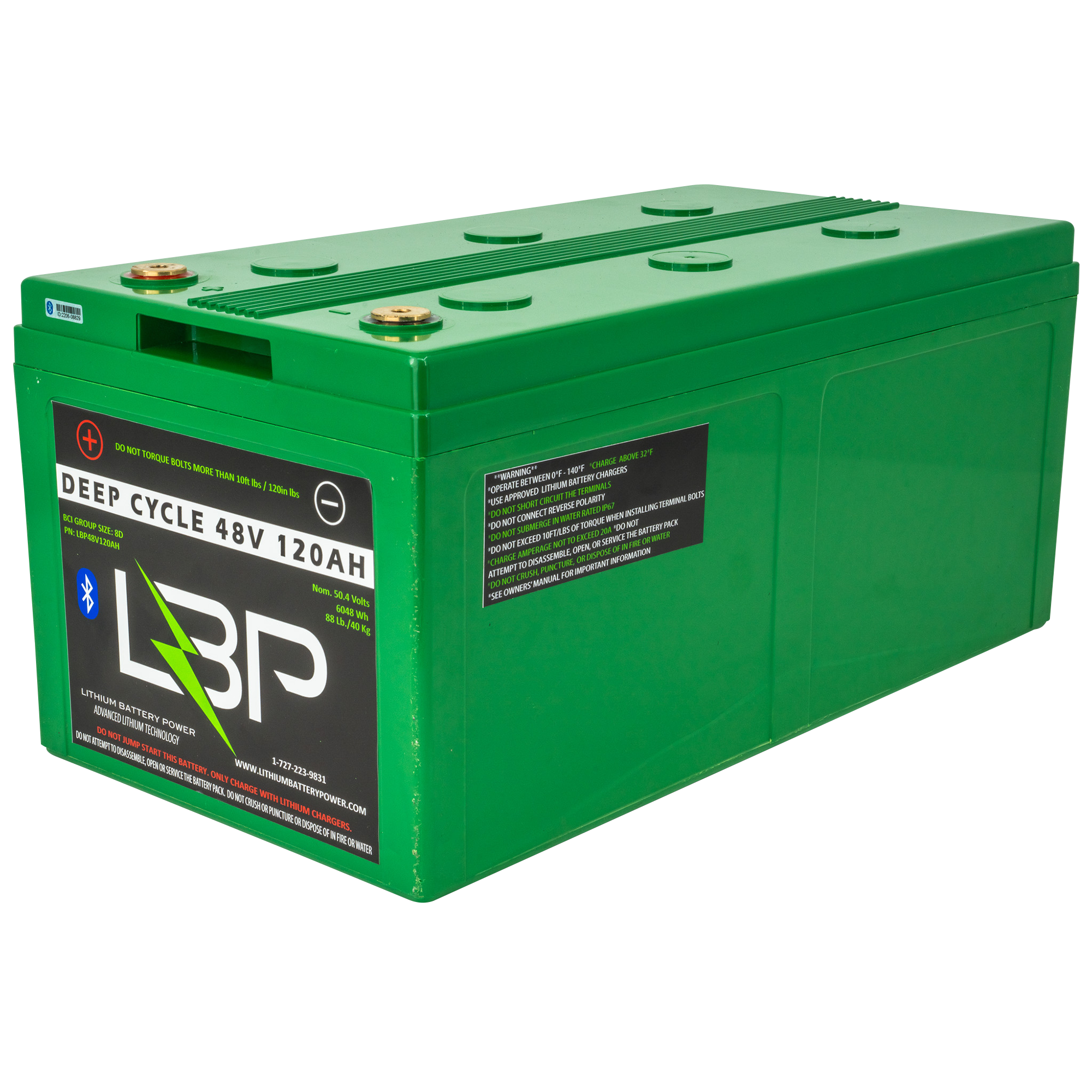

LBP 48V 120 Ah Battery
MSRP:
$2,800.00
Member Price:
$2,380.00
Not a Member Yet? Join & Get Access to our member's only lower prices for just $4/mo. No Commitment, Cancel anytime. After you are a member savings codes generate automatically for all products at checkout.
Description from the Brand
The LBP 48V 120Ah is a deep cycle lithium iron phosphate battery for renewable energy storage, off grid systems and marine use. A built in battery management system balances the cells and shuts the pack down before overcharge, over discharge, short circuit or a temperature it should not be working at. It is a direct replacement for the lead acid, gel and AGM batteries used in most of these systems, at 92.6 pounds in a Group 8D case.
Specification
| Nominal voltage | 50.4V |
| Rated capacity | 120Ah |
| Charge voltage, full charge | 58V |
| Discharge cut-off voltage | 38.8V |
| Recommended charging current | 20A |
| Over-current protection, charging | 23A |
| Max continuous discharge current | 100A |
| Over-current, discharging | 166A |
| Pulse current | 400A for 3 seconds |
| Short circuit protection | Yes |
| Weight | 92.6 lbs |
| Dimensions | 19.5in x 10.2in x 9.1in (Group 8D) |
| Charging protection, high temperature | Cuts out at 113°F, resumes at 91°F |
| Charging protection, low temperature | Cuts out at 32°F, resumes at 41°F |
| Discharging protection, high temperature | Cuts out at 131°F, resumes at 113°F |
| Discharging protection, low temperature | Cuts out at 0°F, resumes at 18°F |
