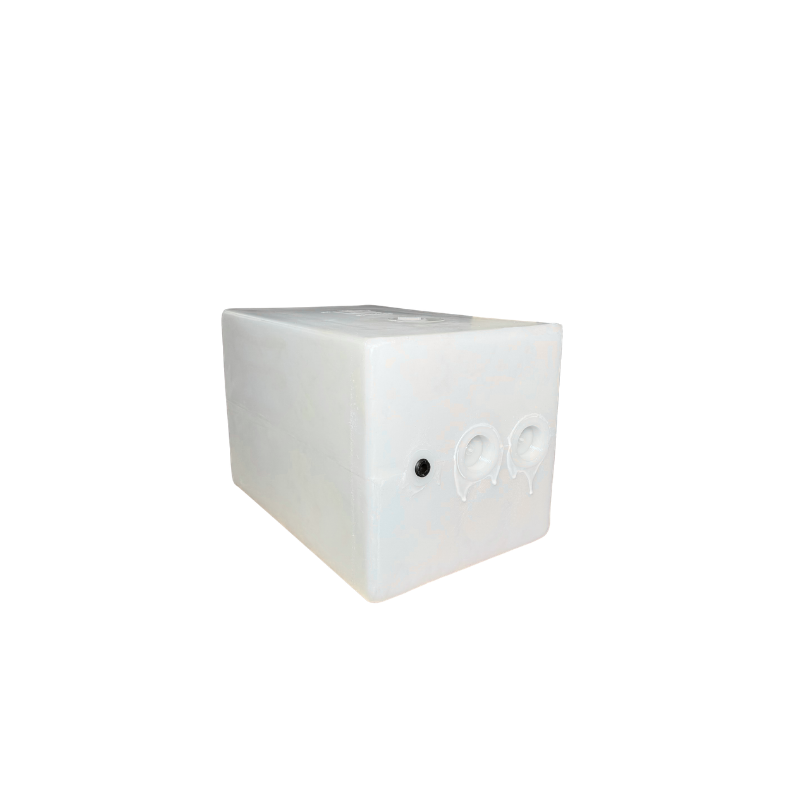

10-Gallon Galley Water Tank (Fresh/Grey)

About the Product

Fits seamlessly into tight spaces without sacrificing interior room. Compact box shape works in galley cabinets, bench seats, or custom storage cavities. Drains straight through your subfloor with a ball valve or connects to an undermount tank for additional storage.

Features

Specifications

• Nominal dimensions: 12" L x 12" W x 18.375" H
  • Actual dimensions may vary up to 1.5% each.
• Capacity: 10 gallons
• Dry Weight: 12 lbs
• Filled Weight: 95 lbs
• Recommended Sensor: KUS S5U-17
• Recommended Heating Pad: Facon CW-T1218
• Not designed for pressurized systems, must be vented

Materials & Certifications

• BPA-free, food-grade polyethylene
• IAPMO TS 4 Certified (fresh water)
• IAPMO TS 2 Certified (grey water)
• CSA B45.6 Certified (grey water)
• Made in the USA
• TEi listed and RVIA approved

What's Included

• Water Tank
• (x2) Adjustable straps
• (x4) Mounting brackets

Ports & Plumbing

• 1/2" NPT fittings, pre-installed
• 1.5" NPT fittings, pre-installed

Shipping & Lead Time

• Ships in 1-2 business days

Note: Despite great care taken during manufacturing and fulfillment, plastic tanks can become dirty and/or scuffed in transit. This does not constitute a damaged tank. Plastic tanks can also become slightly warped, especially on the flat surfaces. This is normal and does not render the tank defective. Maintaining a completely straight/flat surface on a rotationally molded part is not always possible, but we make every effort to keep surfaces within a 1.5 degree tolerance.

Compatibility

• Compatible with any van, truck, or RV platform where dimensions allow, including Sprinter, Transit, and ProMaster builds
