NW Conversions 24 Gallon Ford Transit Spare Tire Tank (TR-ST-24)

About the Product

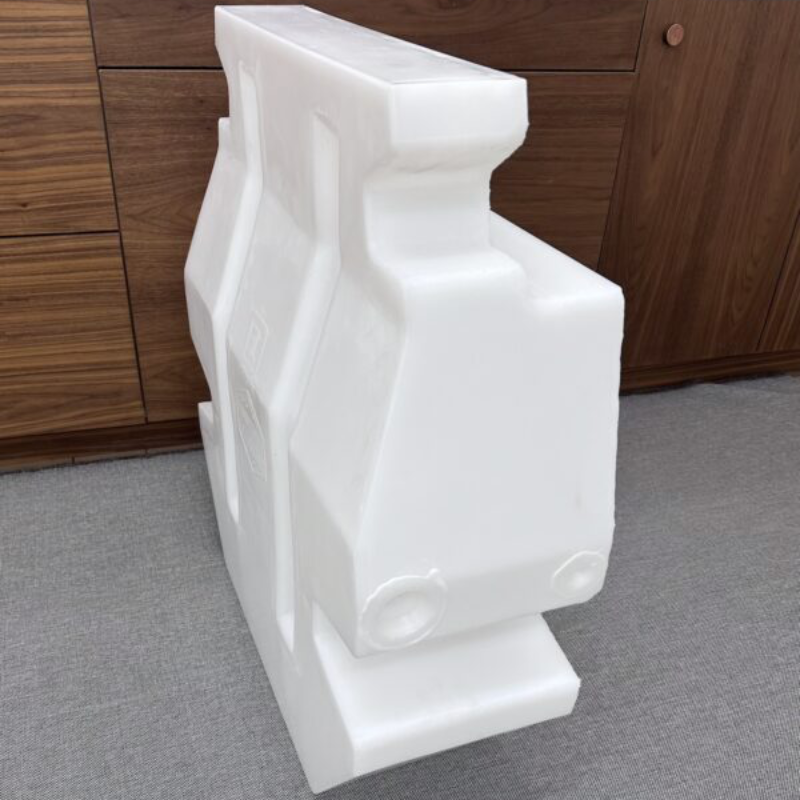

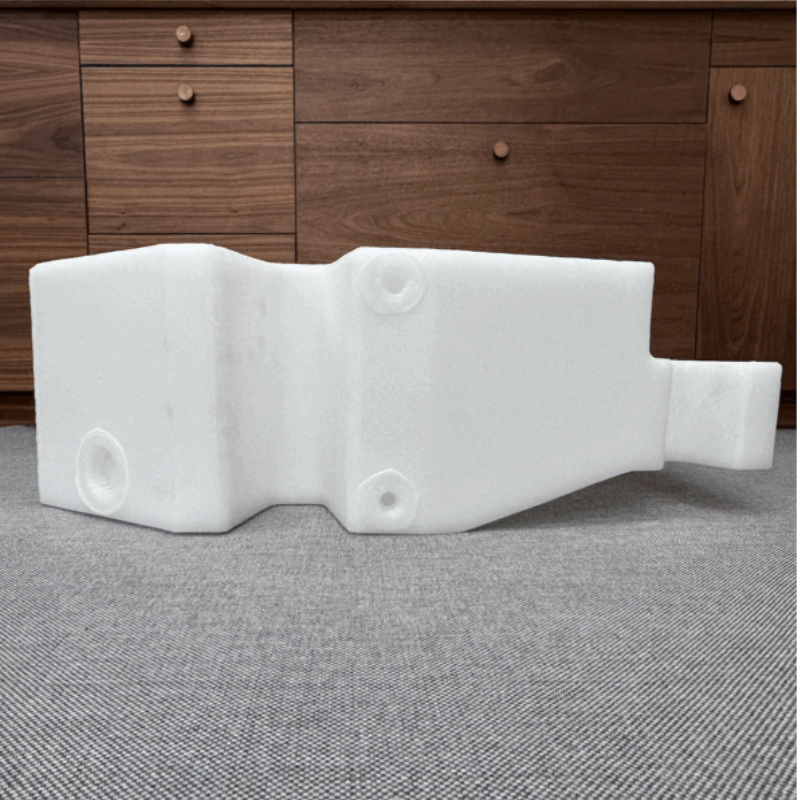

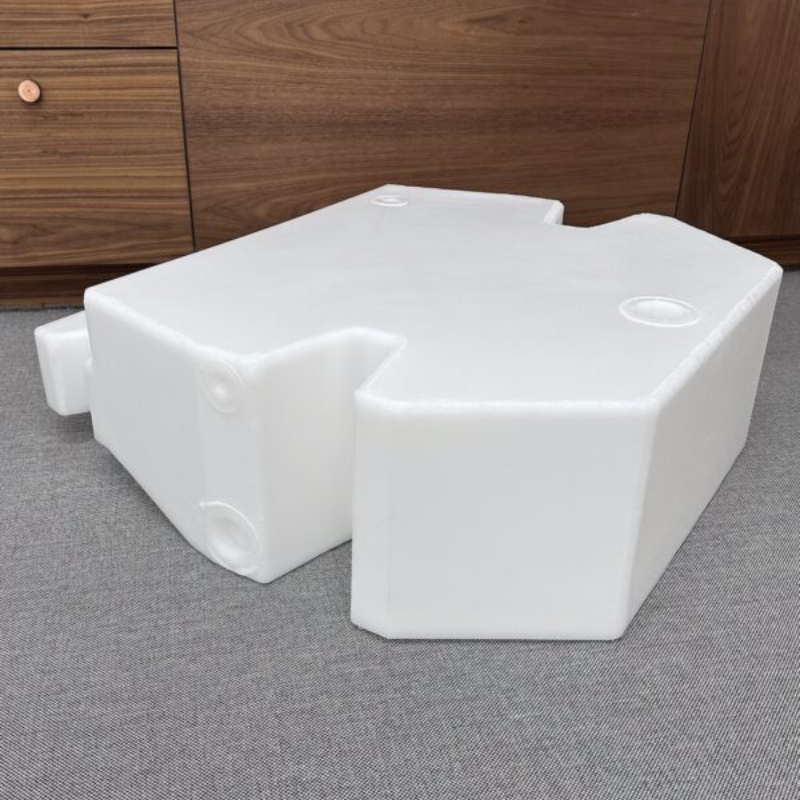

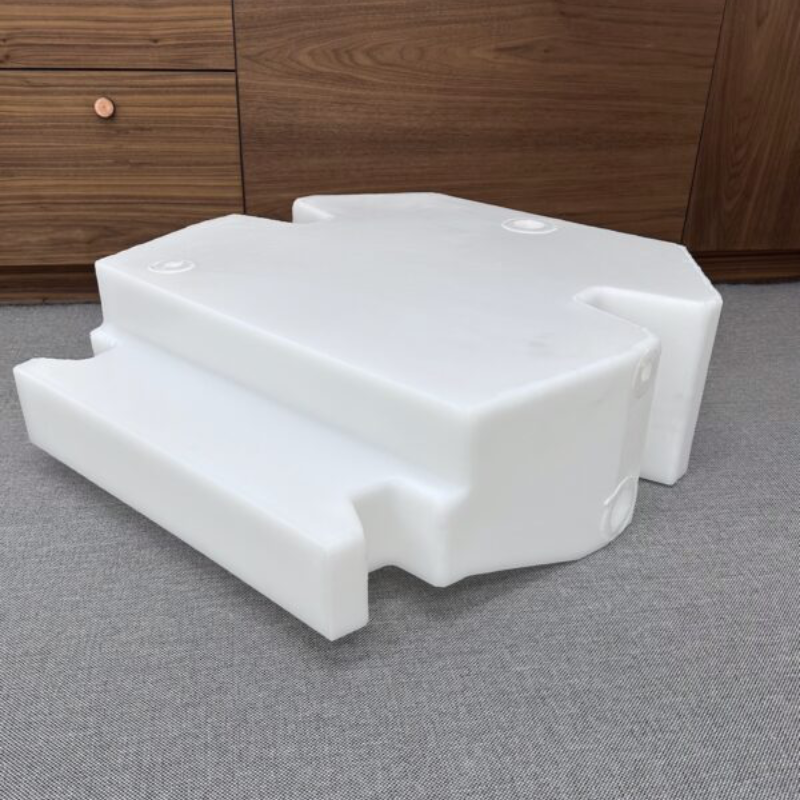

Free up your spare tire space for water storage, with all mounting hardware included. Purpose-built to fit the Ford Transit's factory spare tire location, using the supplied mounting hardware for a secure, clean install. Relocate your spare to the rear door to add substantial water storage without giving up living space. Works for both fresh water and grey water applications. Made in the USA by GoCode.

Features

Specifications

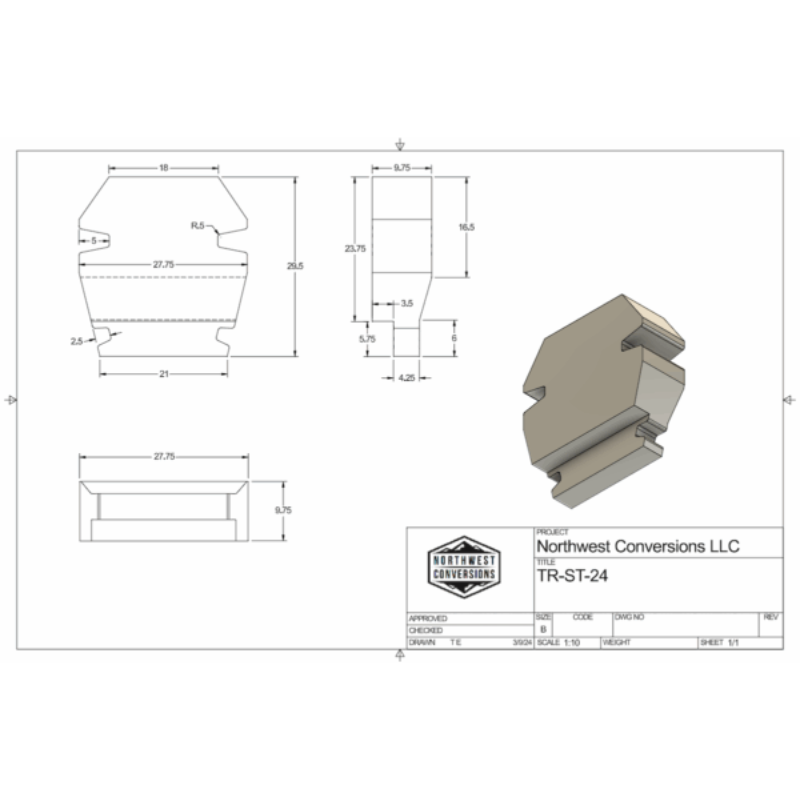

• Nominal dimensions: 29.5" L x 27.75" W x 9.75" H
  • Actual dimensions may vary up to 1.5% each.
• Capacity: 24 gallons
• Dry Weight: 22 lbs
• Filled Weight: 222 lbs

• Recommended sensor: KUS S5U-9
• Water use: Fresh water or grey water
• Not designed for pressurized systems, must be vented

Materials & Certifications

• BPA-free, food-grade polyethylene
• IAPMO TS-4 / TEI Listed / RVIA Approved
• Made in the USA
• TEi listed and RVIA approved

What's Included

• Water Tank
• 1/2" mounting hardware and plates included

Ports & Plumbing

• Driver side: (2) 1.5" NPT + (2) 1/2" NPT
• Top: (1) 1.5" NPT + (1) 1/2" NPT (float sensor or vent)

Shipping & Lead Time

• Ships in 1-2 business days

Note: Despite great care taken during manufacturing and fulfillment, plastic tanks can become dirty and/or scuffed in transit. This does not constitute a damaged tank. Plastic tanks can also become slightly warped, especially on the flat surfaces. This is normal and does not render the tank defective. Maintaining a completely straight/flat surface on a rotationally molded part is not always possible, but we make every effort to keep surfaces within a 1.5 degree tolerance.

Compatibility

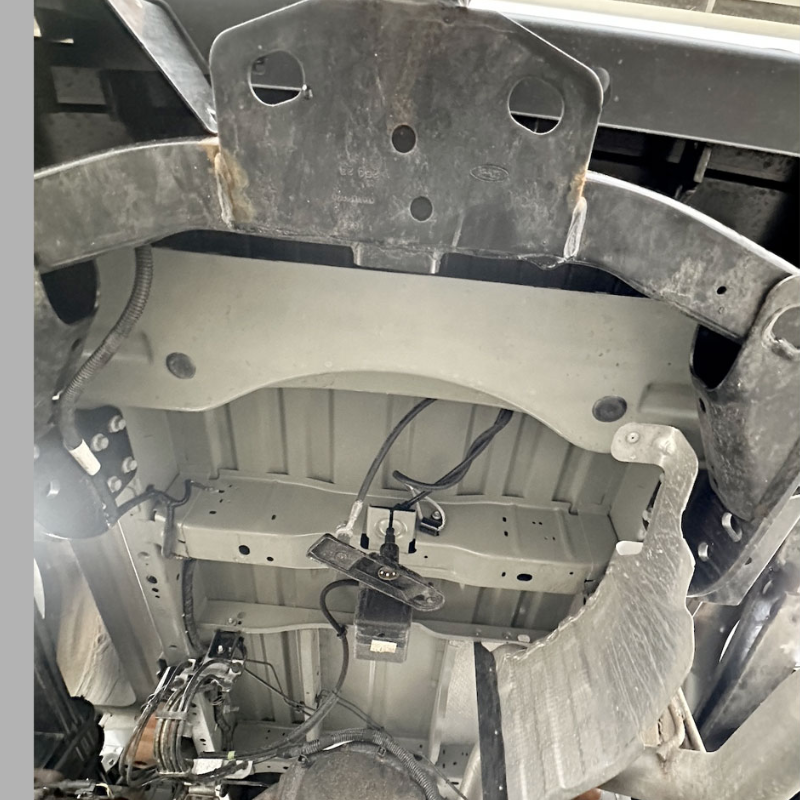

• Ford Transit (2007-present), spare tire location
• May fit other makes and models, confirm dimensions before ordering
