24-Gallon Ford Transit Wheel Well Water Tank - Left (TR-L-24)

24-Gallon Wheel Well Water Tank - Left (TR-L-24)

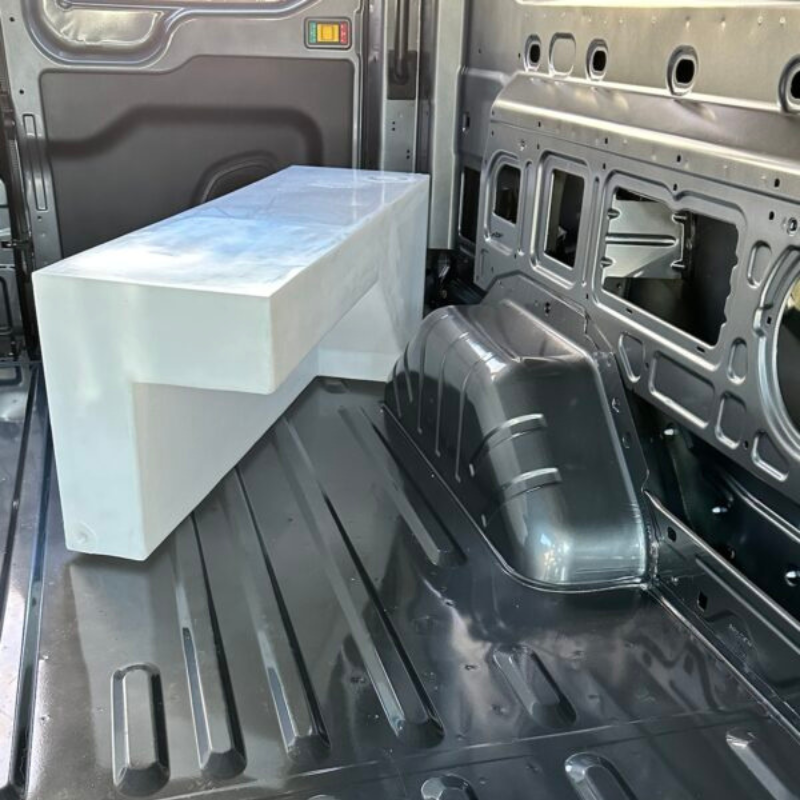

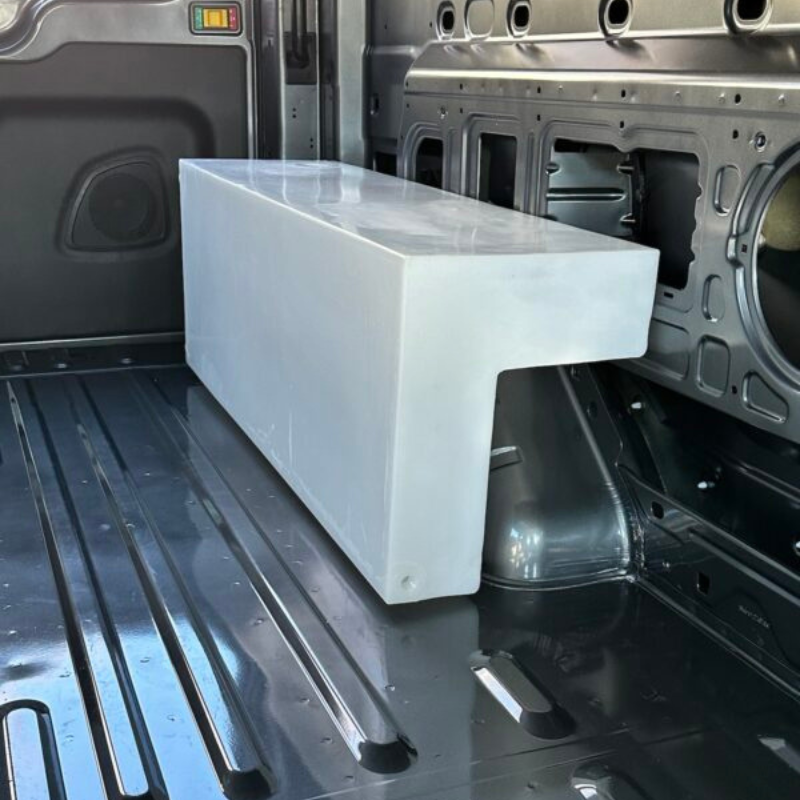

Designed specifically for the Transit van, this tank makes use of the space your wheel well would otherwise waste. It sits offset toward the rear or front of the wheel well depending on placement side, keeping your floor plan open while adding serious water capacity for your van build.

Dimensions & Weight

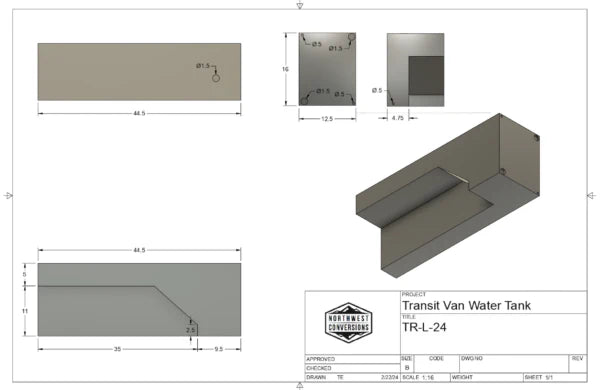

• Size: 44.5" long × 16" wide × 12.5" tall
• Capacity: 24 gallons
• Weight: 22 lbs

Ports & Plumbing

• (2) 1.5" NPT ports on the rectangular end, pre-marked, drill out to use
• (2) 1/2" NPT ports on the rectangular end
• (1) 1/2" NPT port on the open end
• (1) 1.5" NPT port on top for fill or level sensor, pre-marked, drill out to use
• Not designed for pressurized systems, must be vented

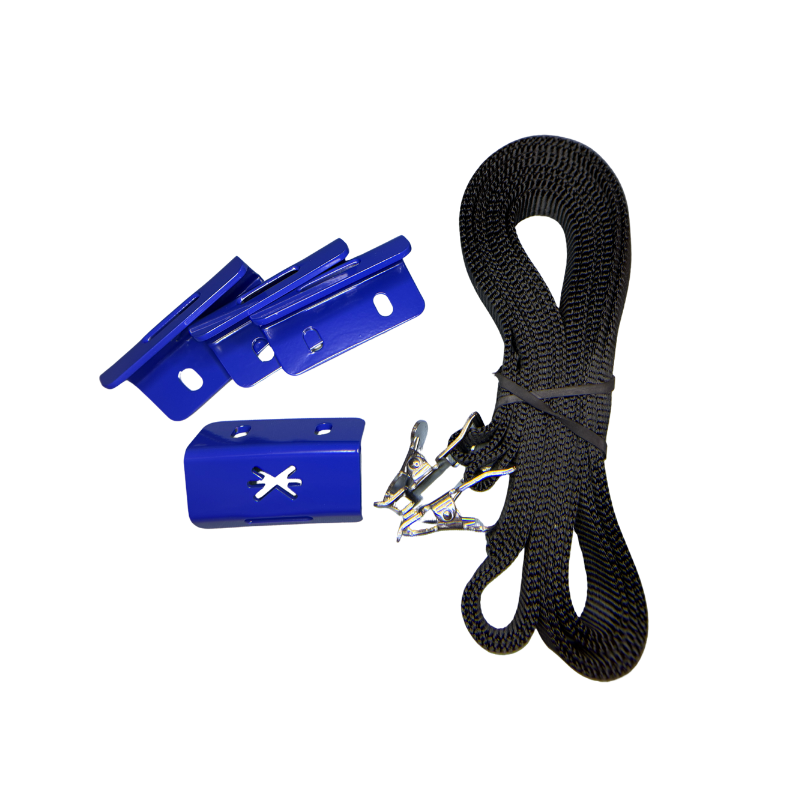

Included With Every Order

• (x2) Adjustable straps
• (x4) Mounting brackets

Materials & Certifications

• BPA-free, food-grade polyethylene
• Made in the USA
• IAPMO TS 4 Certified

Vehicle Compatibility

• Designed specifically for the Transit van
• May also fit other makes and models

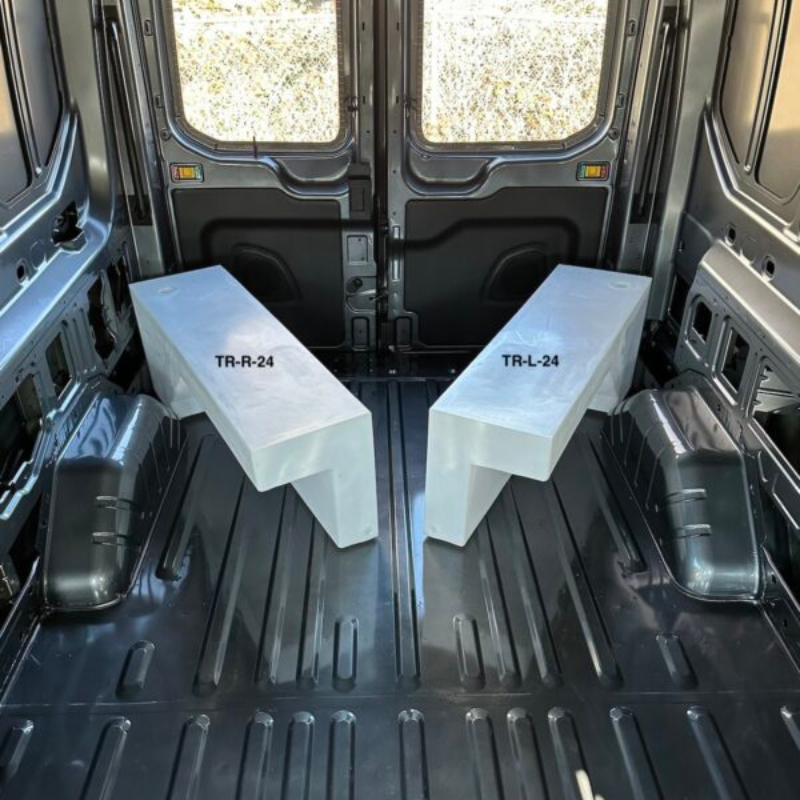

• Driver side: tank sits with majority rear of wheel well
• Passenger side: tank sits with majority front of wheel well
