36-Gallon Wheel Well Water Tank - Center (SP-C-36)

About the Product

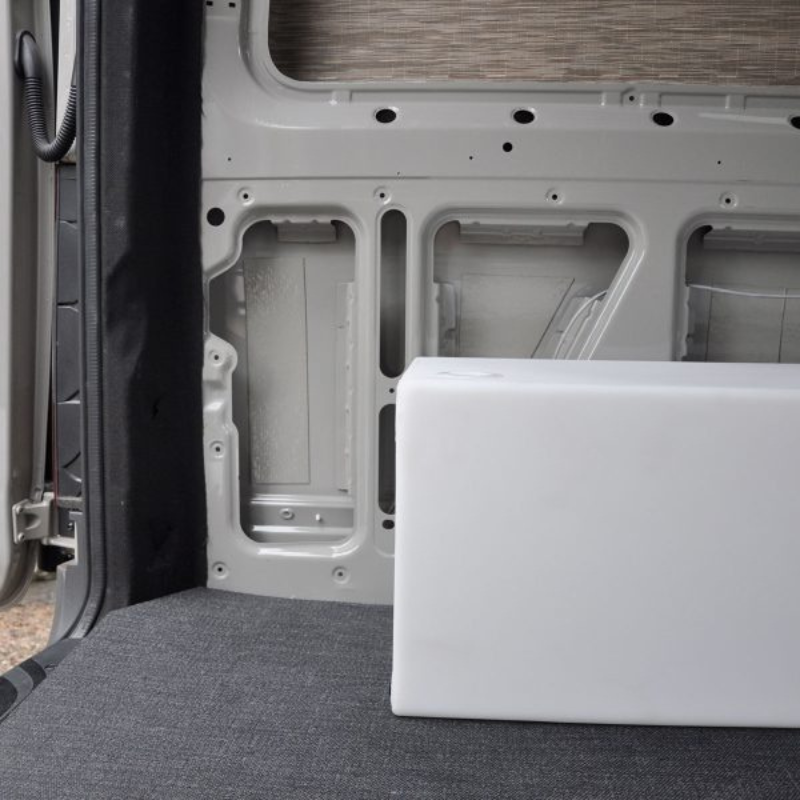

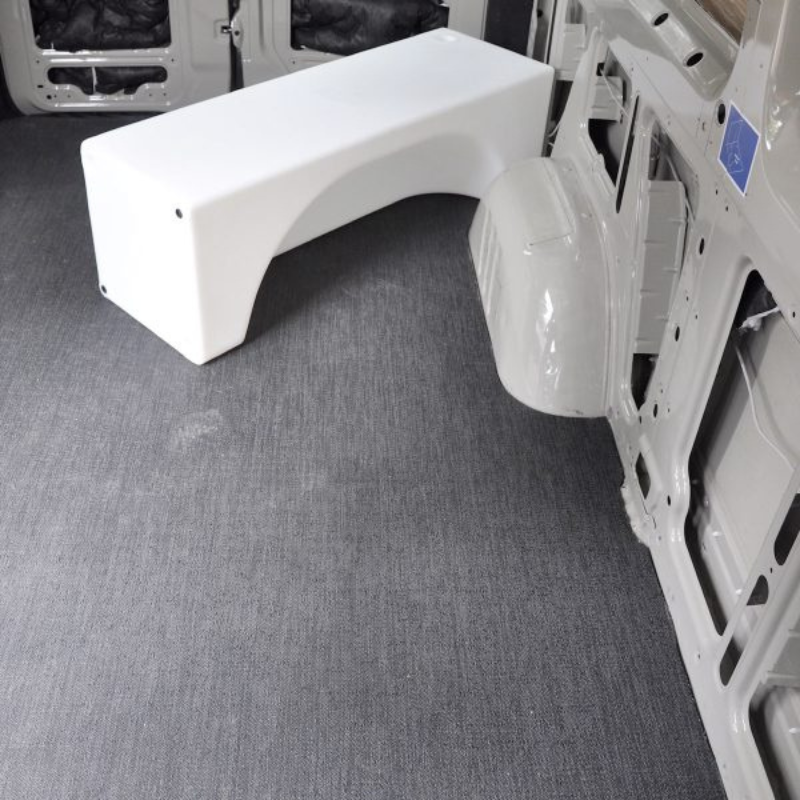

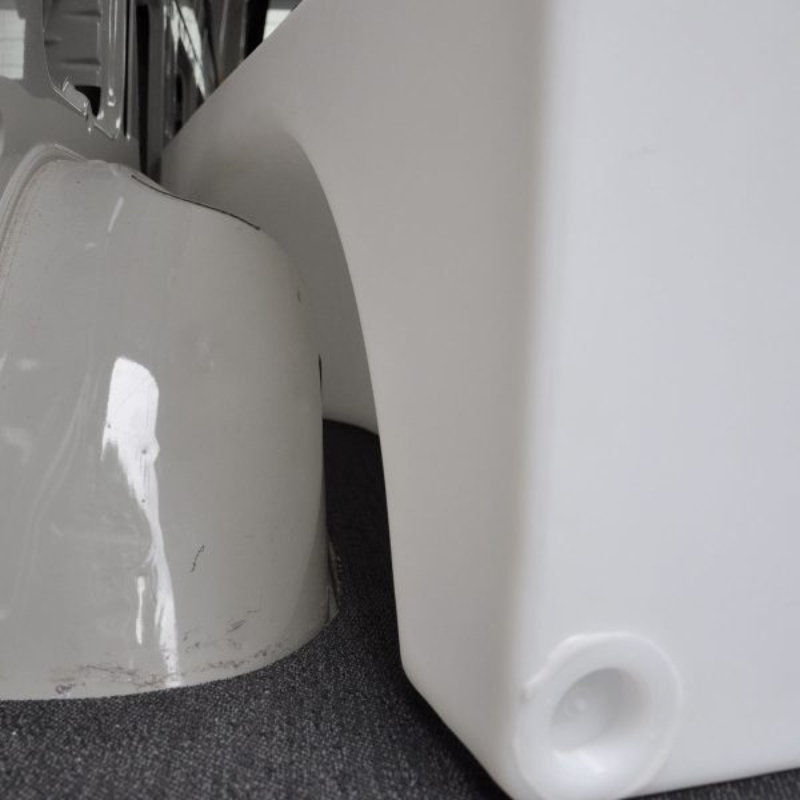

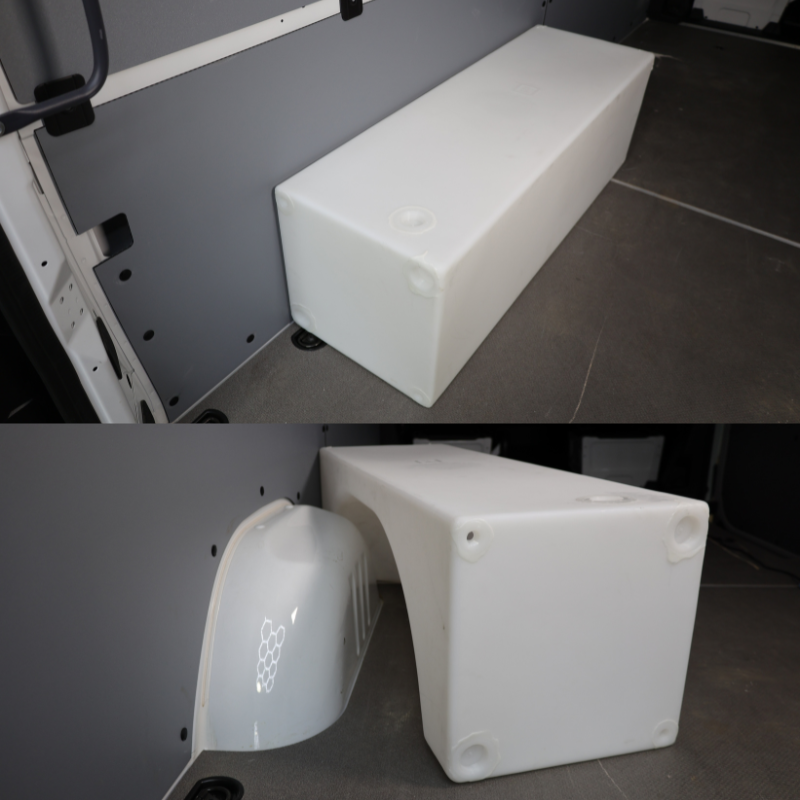

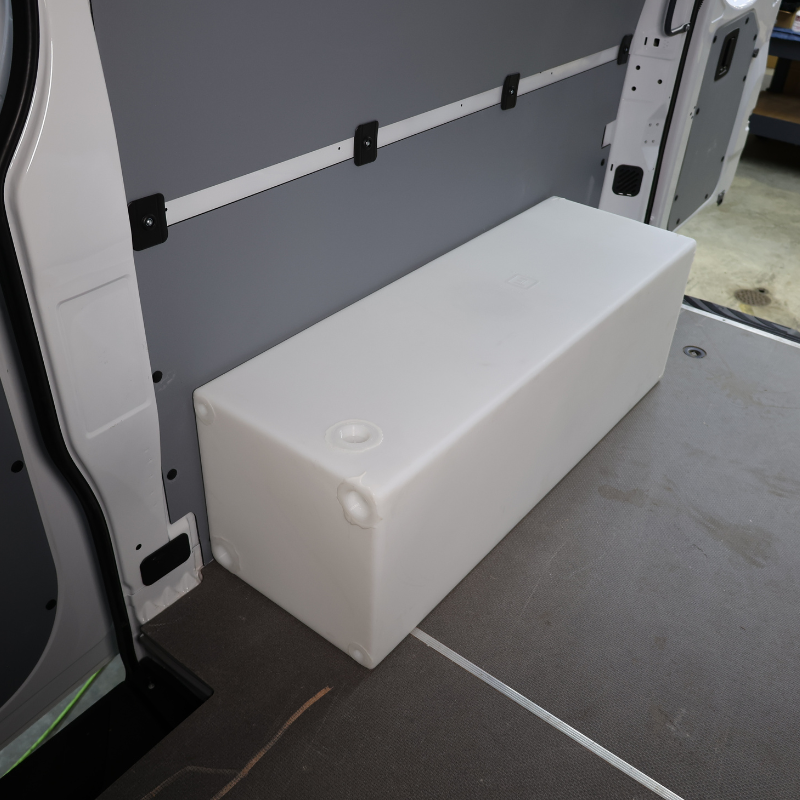

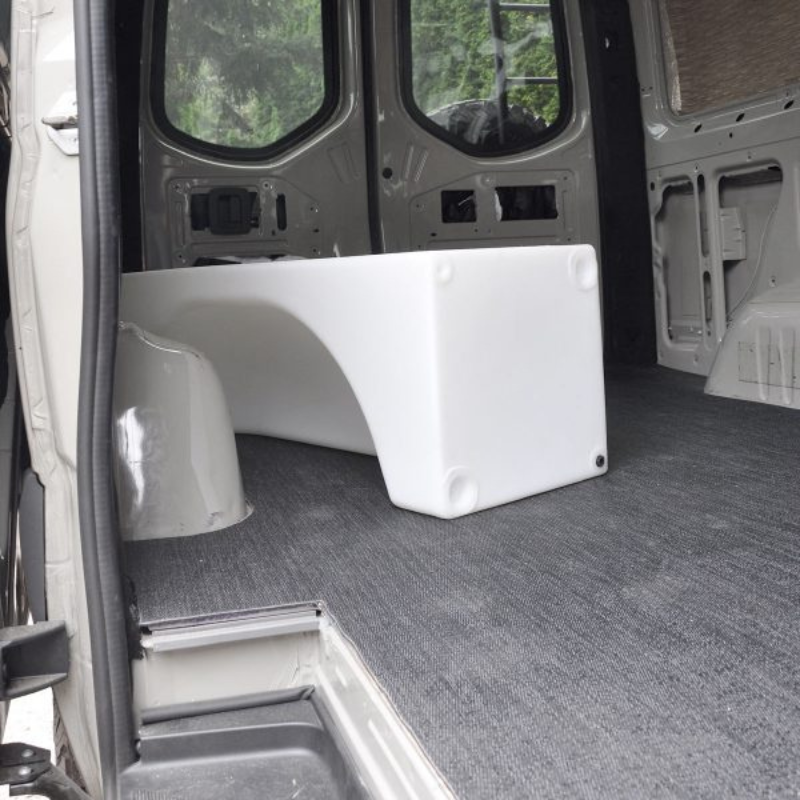

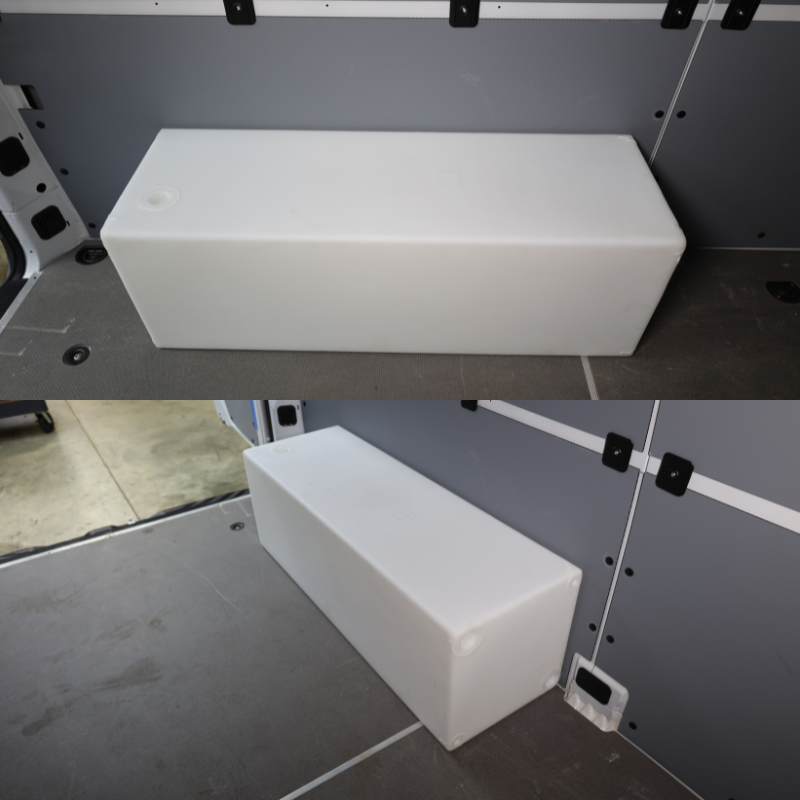

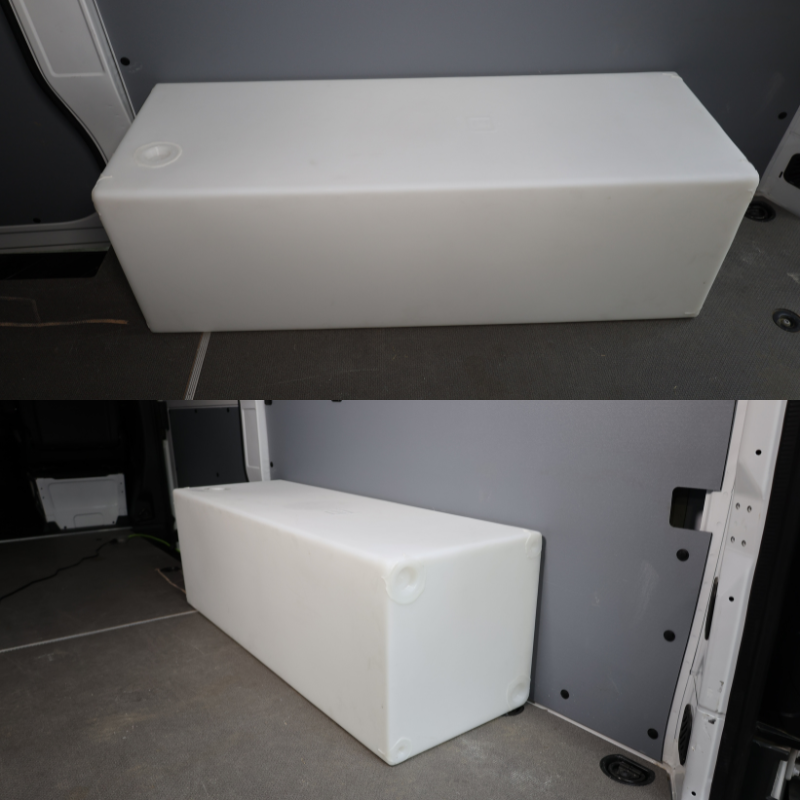

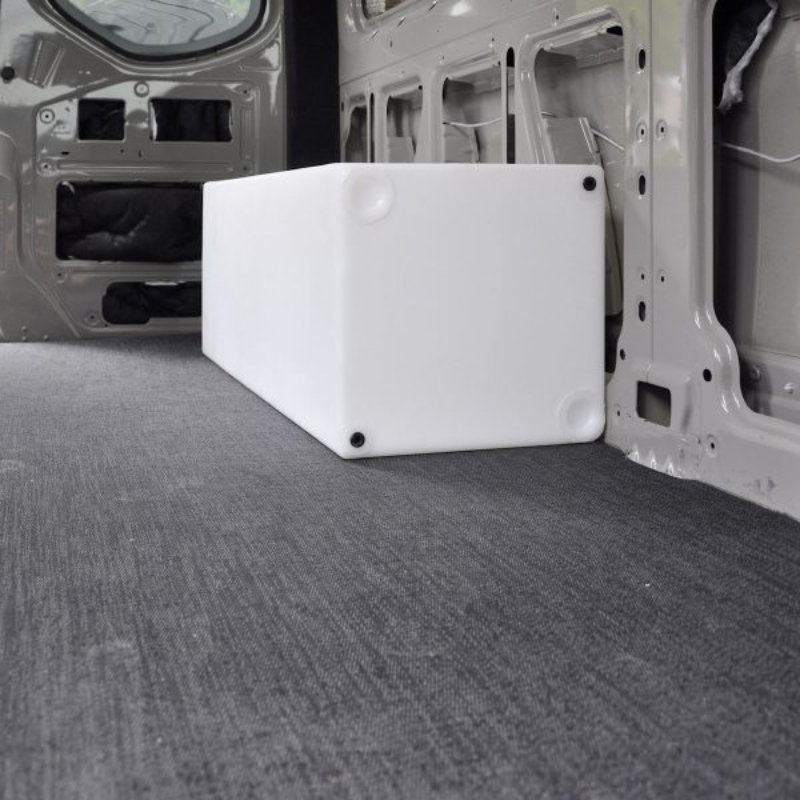

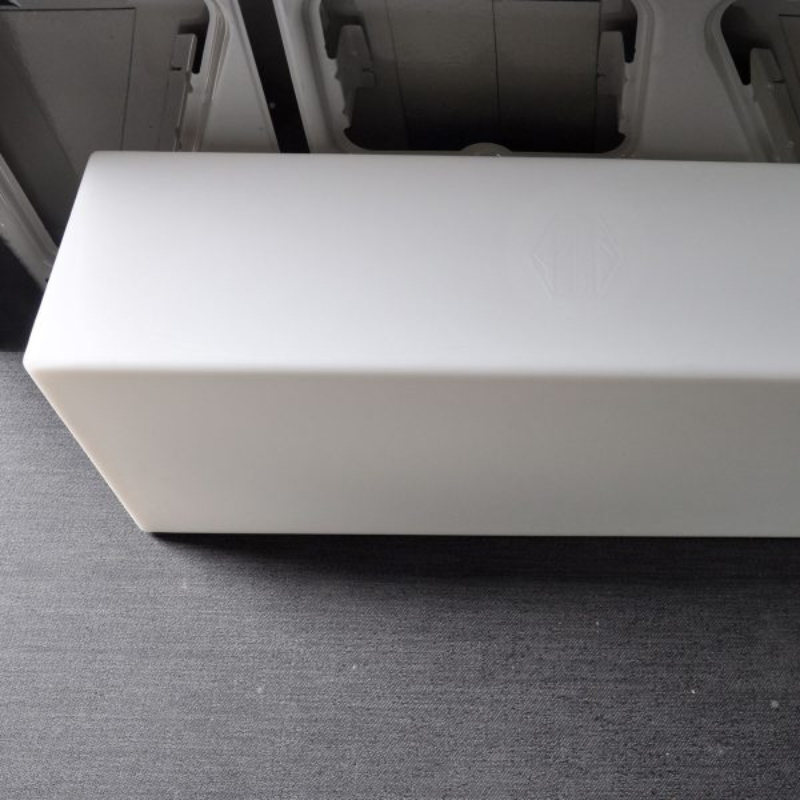

Made for a Mercedes Sprinter. Fits the wheel well space, keeping your floor plan open while adding water capacity. Sits centered over the wheel well.

Features

Specifications

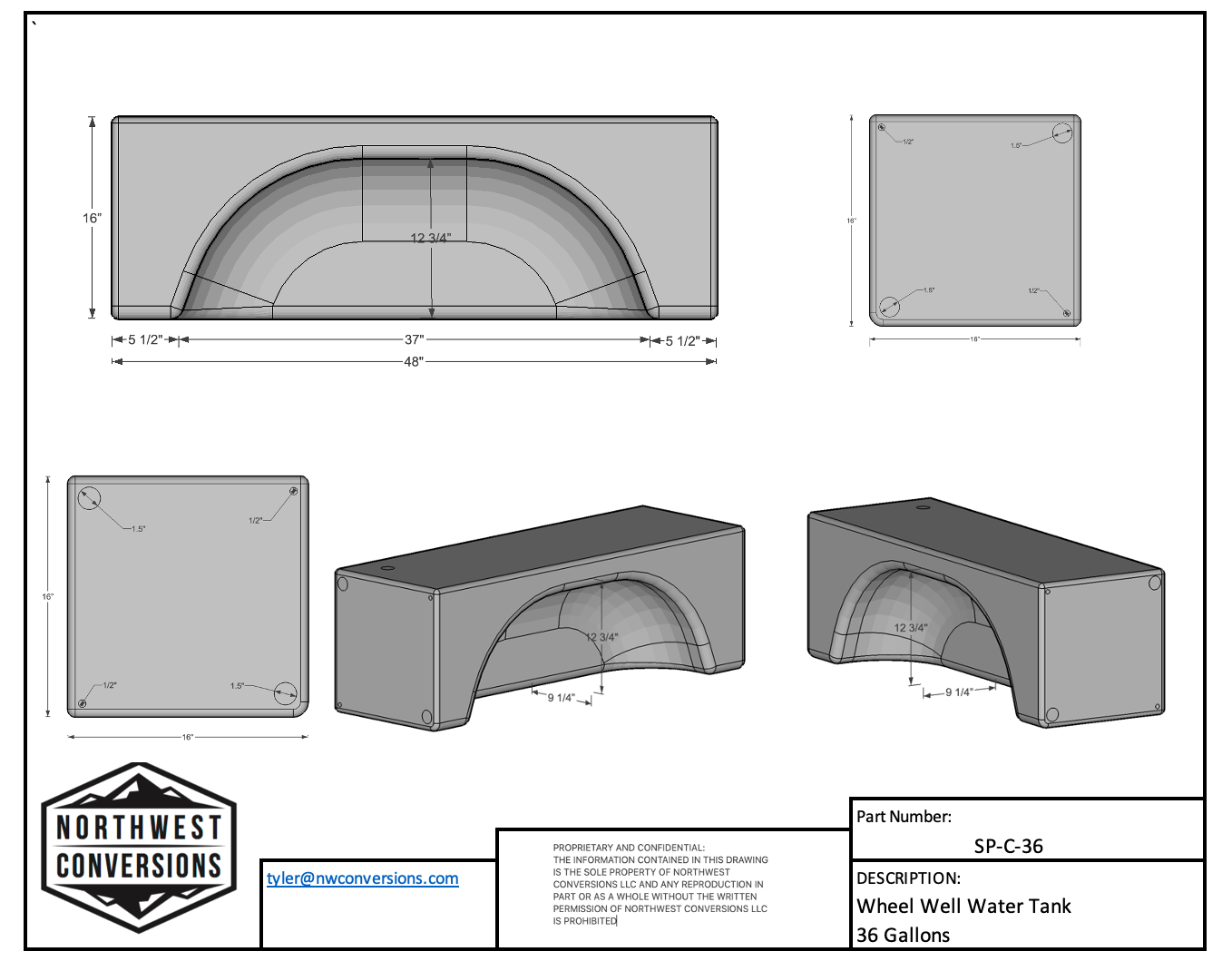

• Nominal dimensions: 48" L x 16" W x 16" H
  • Actual dimensions may vary up to 1.5% each.
• Capacity: 36 gallons
• Dry weight: 27 lbs
• Filled Weight: 327 lbs
• Recommended Sensor: KUS S5U-15
• Not designed for pressurized systems, must be vented

Materials & Certifications

• BPA-free, food-grade plastic
• IAPMO TS 4 Certified
• Made in the USA
• TEi listed and RVIA approved

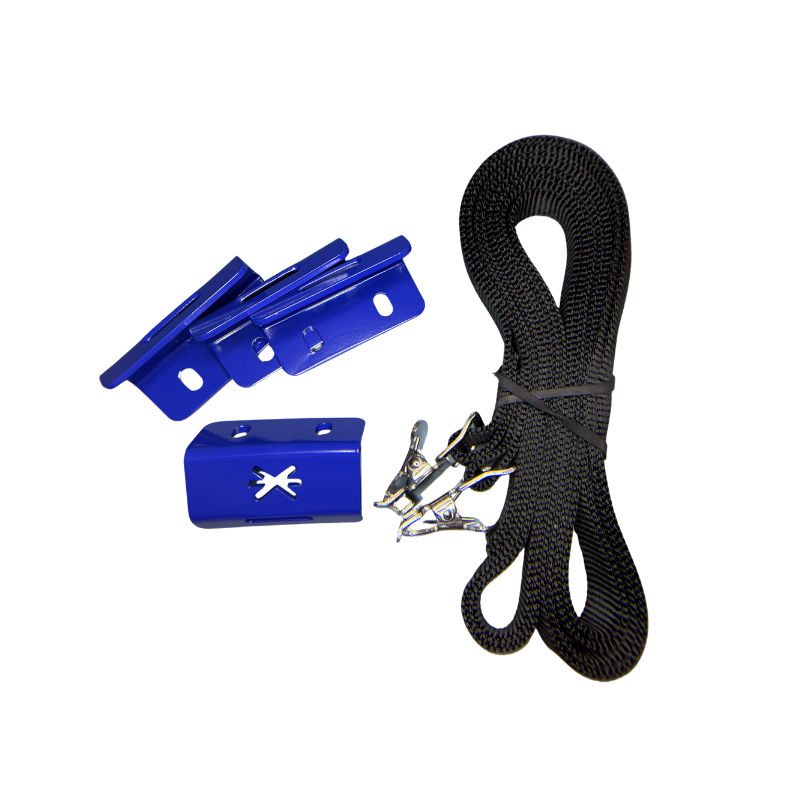

What's Included

• Water Tank
• (x2) Adjustable straps
• (x4) Mounting brackets

Ports & Plumbing

• (2) 1.5" NPT ports on either end, pre-marked, drill out to use
• (2) 1/2" NPT ports on either end
• (1) 1.5" NPT port on top for fill or level sensor, pre-marked, drill out to use

Shipping & Lead Time

• Ships in 1-2 business days

Note: Despite great care taken during manufacturing and fulfillment, plastic tanks can become dirty and/or scuffed in transit. This does not constitute a damaged tank. Plastic tanks can also become slightly warped, especially on the flat surfaces. This is normal and does not render the tank defective. Maintaining a completely straight/flat surface on a rotationally molded part is not always possible, but we make every effort to keep surfaces within a 1.5 degree tolerance.

Compatibility

• Sprinter 2500 direct fit (also fits Sprinter T1N)
• Transit (single rear wheel) fits with slightly more room around the wheel well for insulation
• ProMaster requires a 3.5" elevation to clear the larger wheel wells
• Compatible with other makes and models (see below)
• Can be placed on either driver or passenger side
