High strength drop down running board system for 2007+ Sprinter vans with full length boards on both driver and passenger sides.
- Flat rate shipping to the Lower 48 states. $250 for 144-inch running boards and $400 for 170-inch running boards. Free warehouse pickup available.
Key Features:
- Compatible with all 2007+ Sprinter wheelbases
- Coated aluminum construction

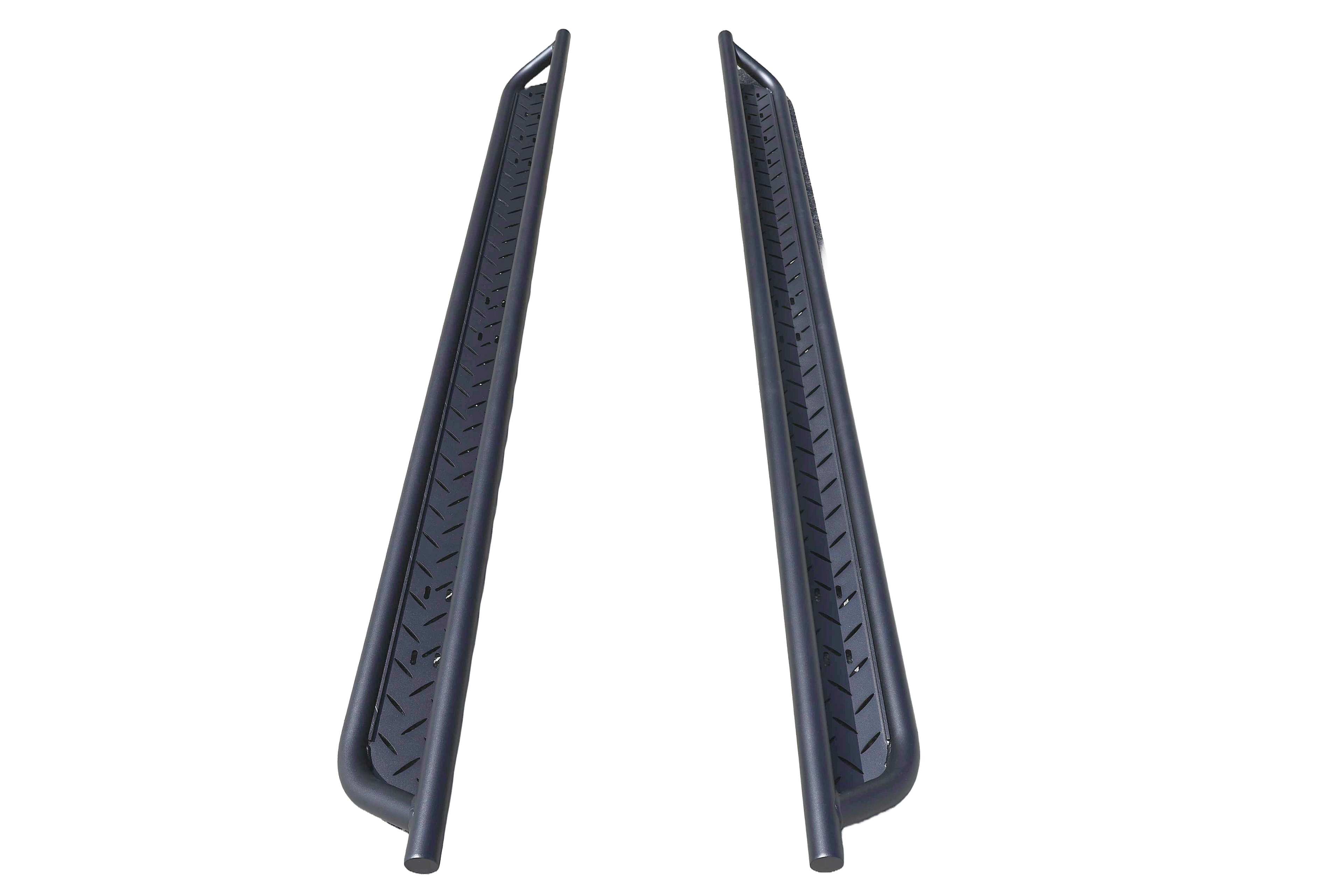

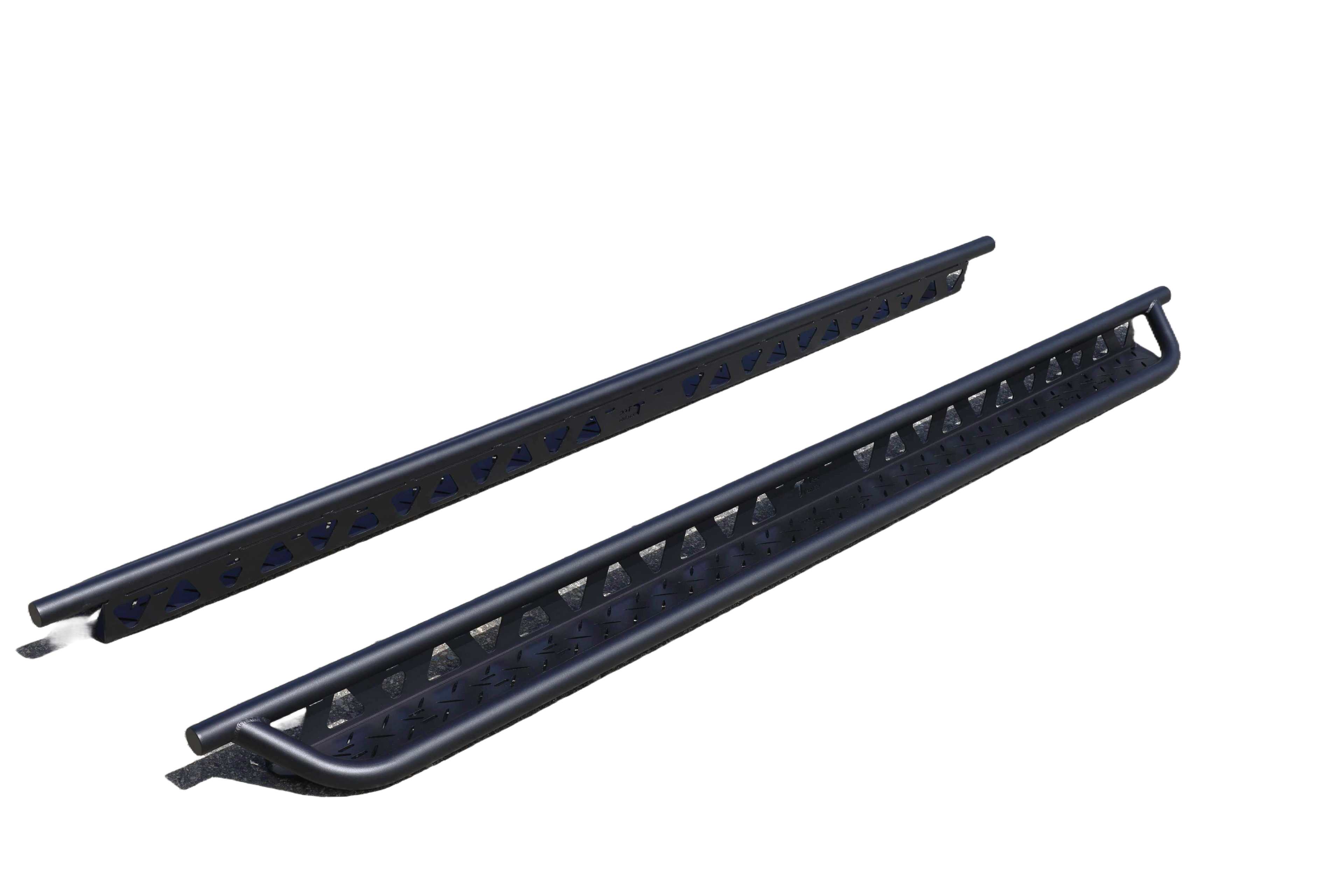

- Full length two piece kit with continuous running boards on both driver and passenger sides

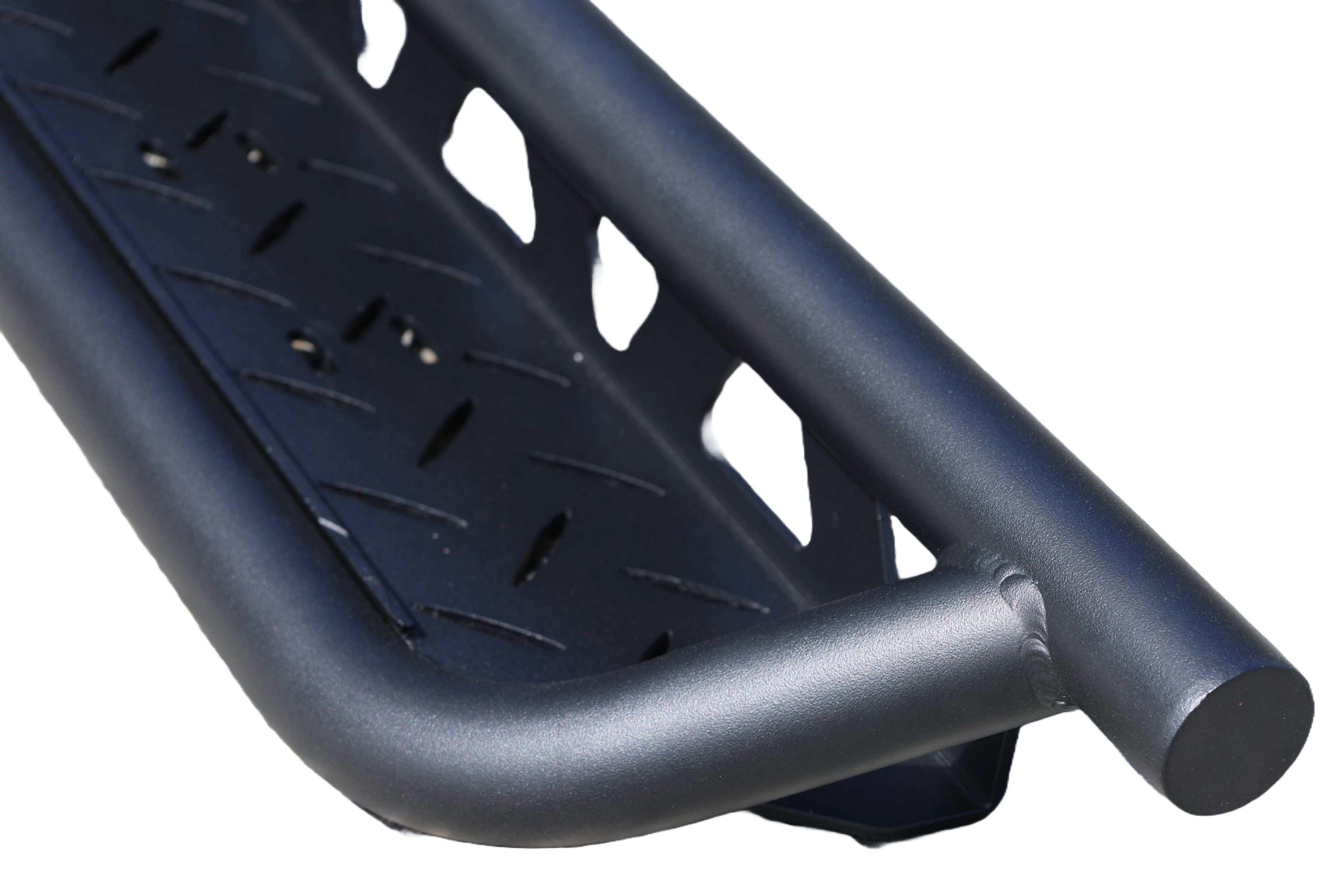

- 1.75" aluminum tube for a solid, stable stepping platform

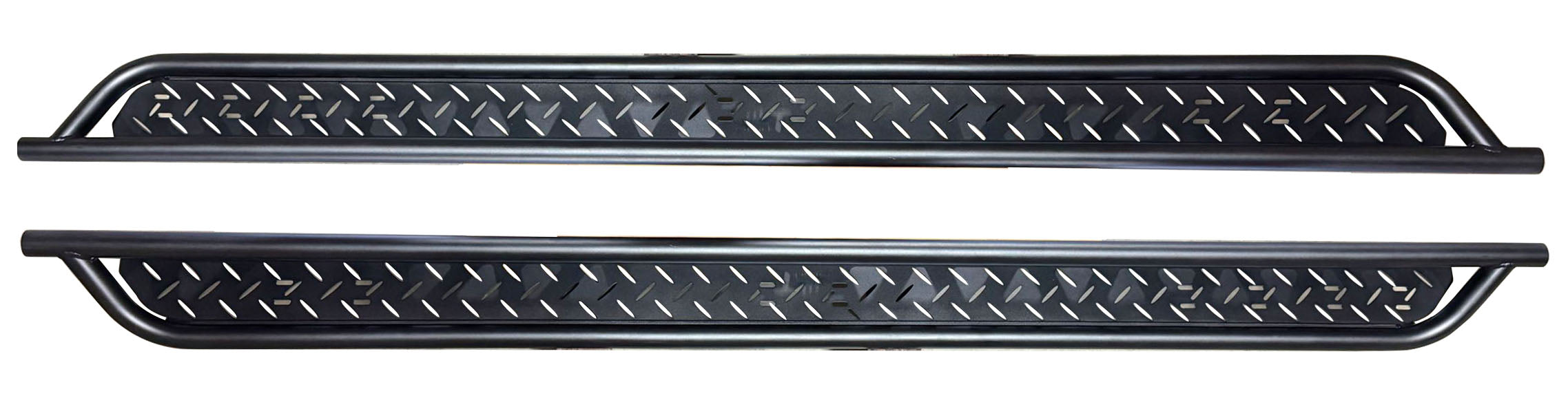

- Wide 6.30" footbed for comfortable use with hiking boots
- Continuous step surface along each side with no gaps between sections

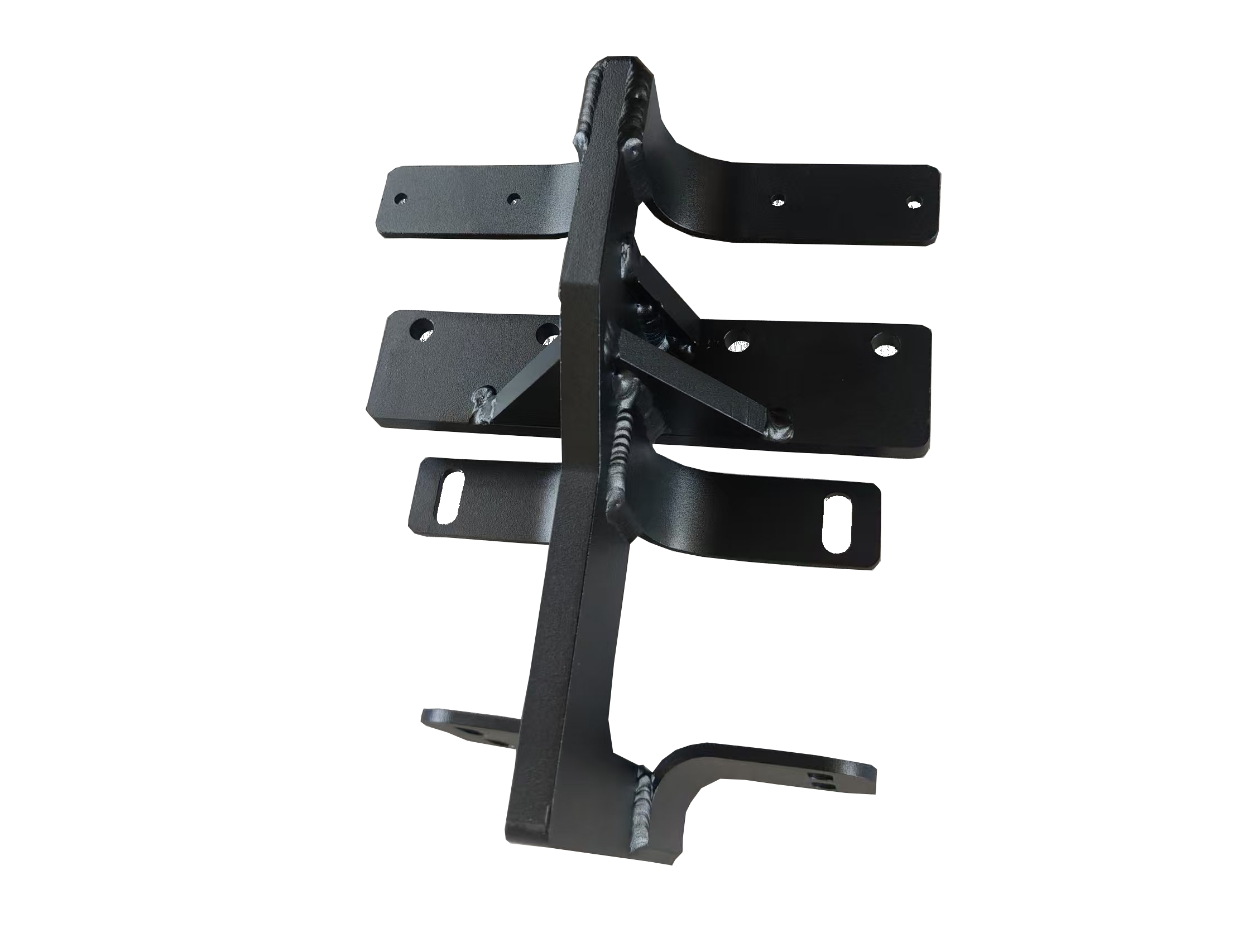

- TIG welded steel support brackets for clean, strong joints
-
Bendable bracket tabs for uneven undercoating adjustment
- Lightweight and easy to install
- Mounting hardware included
Measurements:
- 144": 103.9" × 6.30" × 6.90" (2640mm × 160 mm × 175 mm)
- 170": 130.7" × 6.30" × 6.90" (3320 mm × 160 mm × 175 mm)

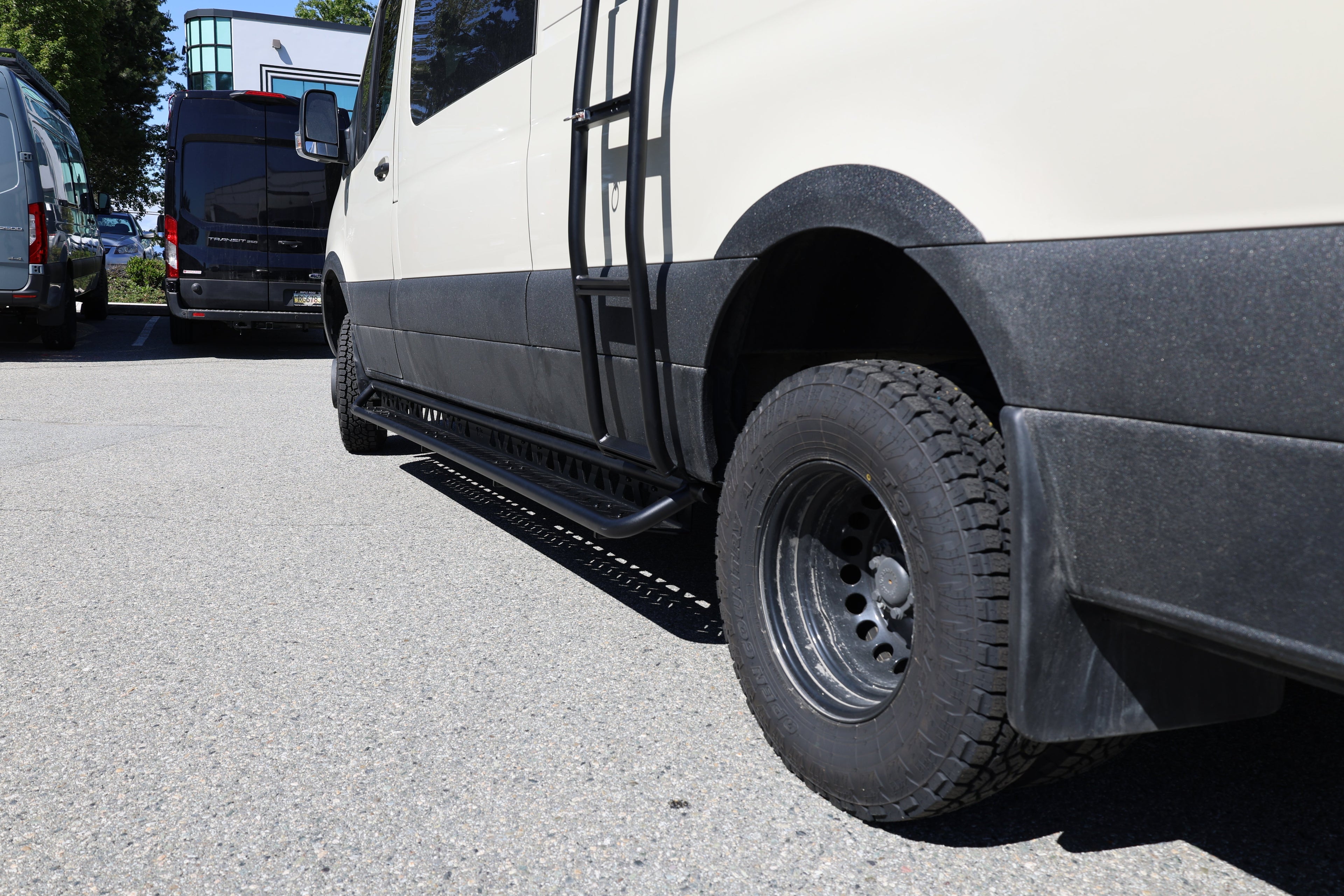

Constructed with coated aluminum, this drop down running board system delivers long term corrosion resistance and dependable strength. The full length two piece layout provides one continuous board on the driver side and one on the passenger side, with each board running the length of the van for its wheelbase. Each board is built around a 1.75" aluminum tube and a wide footbed to provide a stable platform when entering or exiting the vehicle along the entire side.

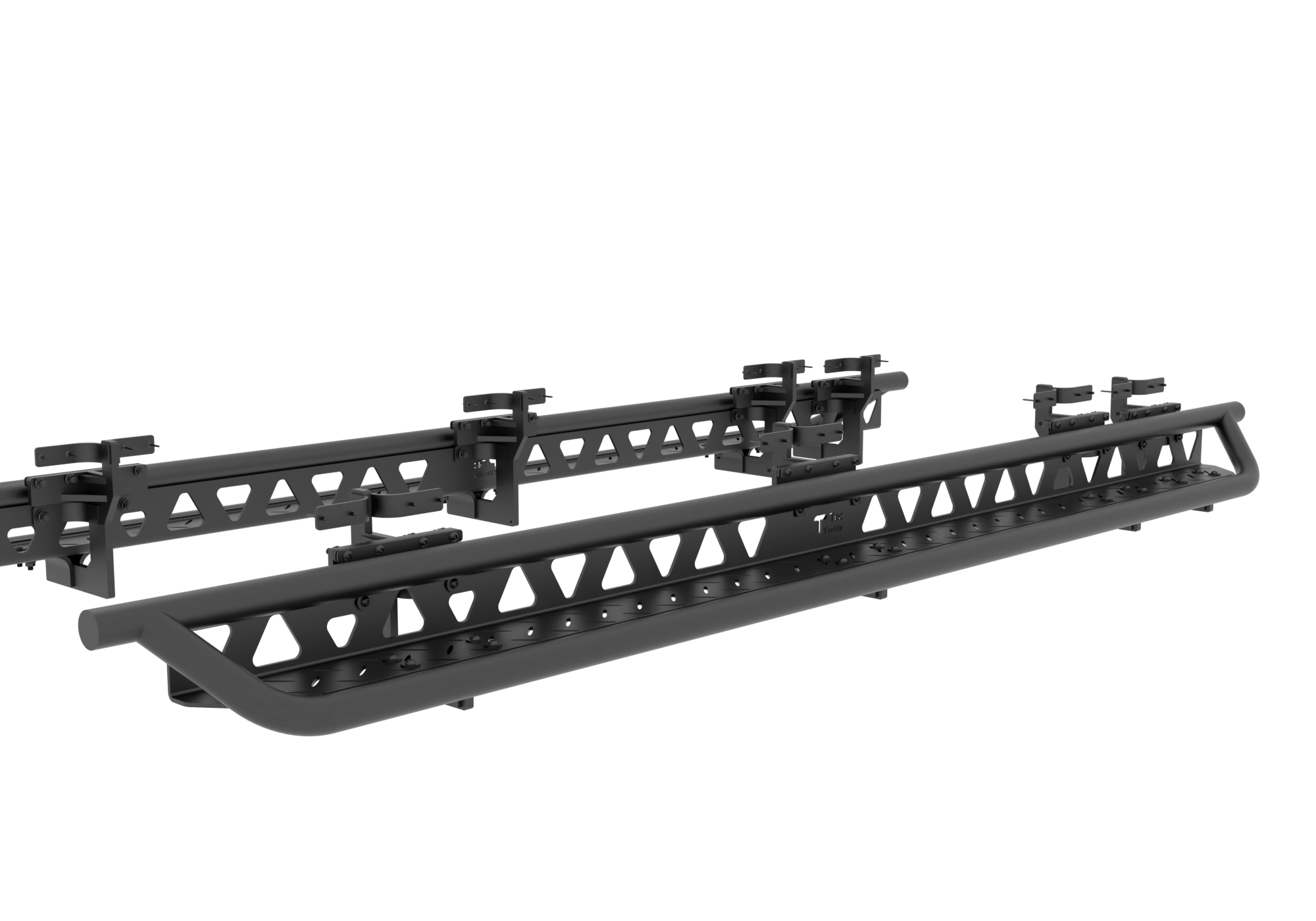

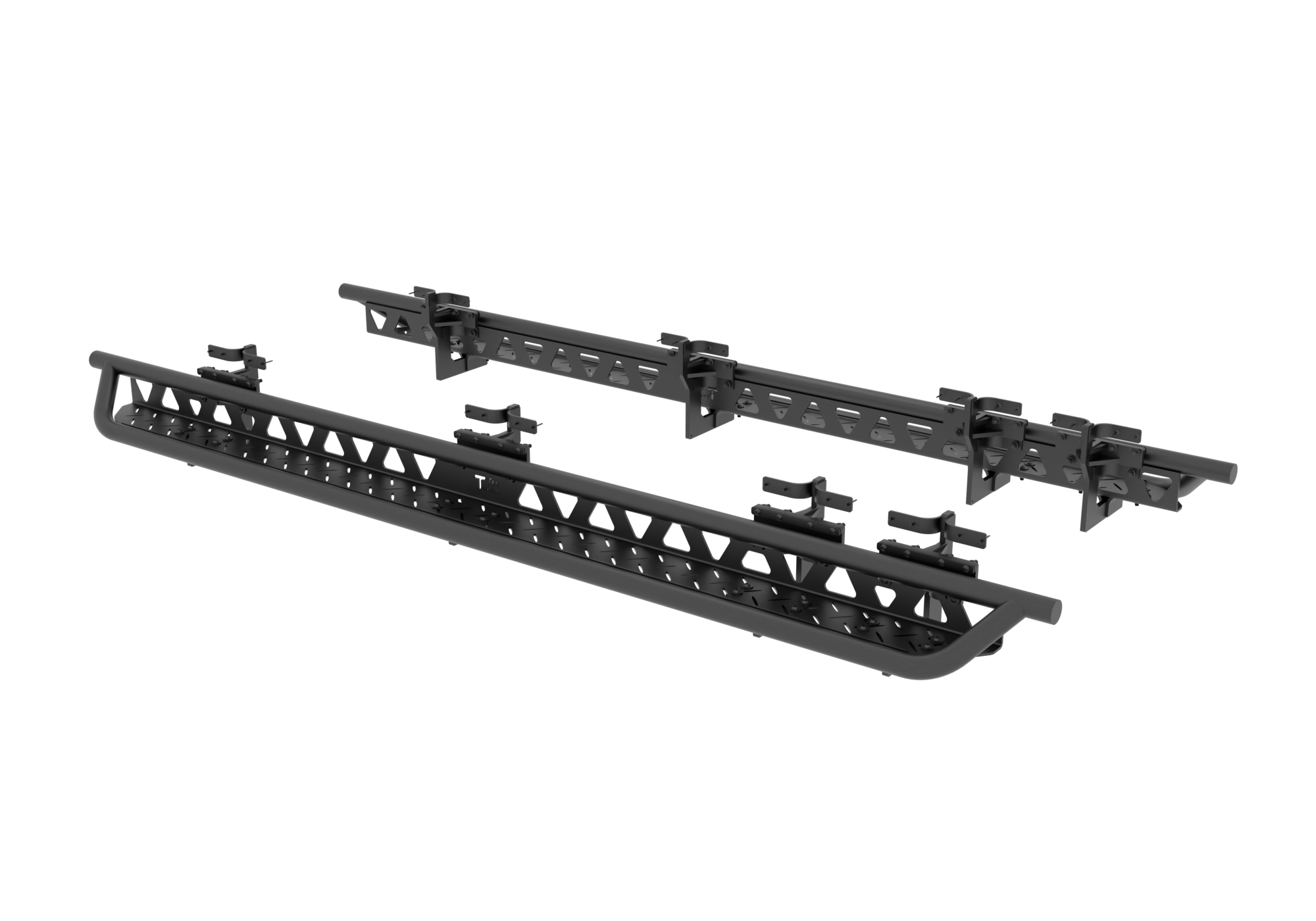

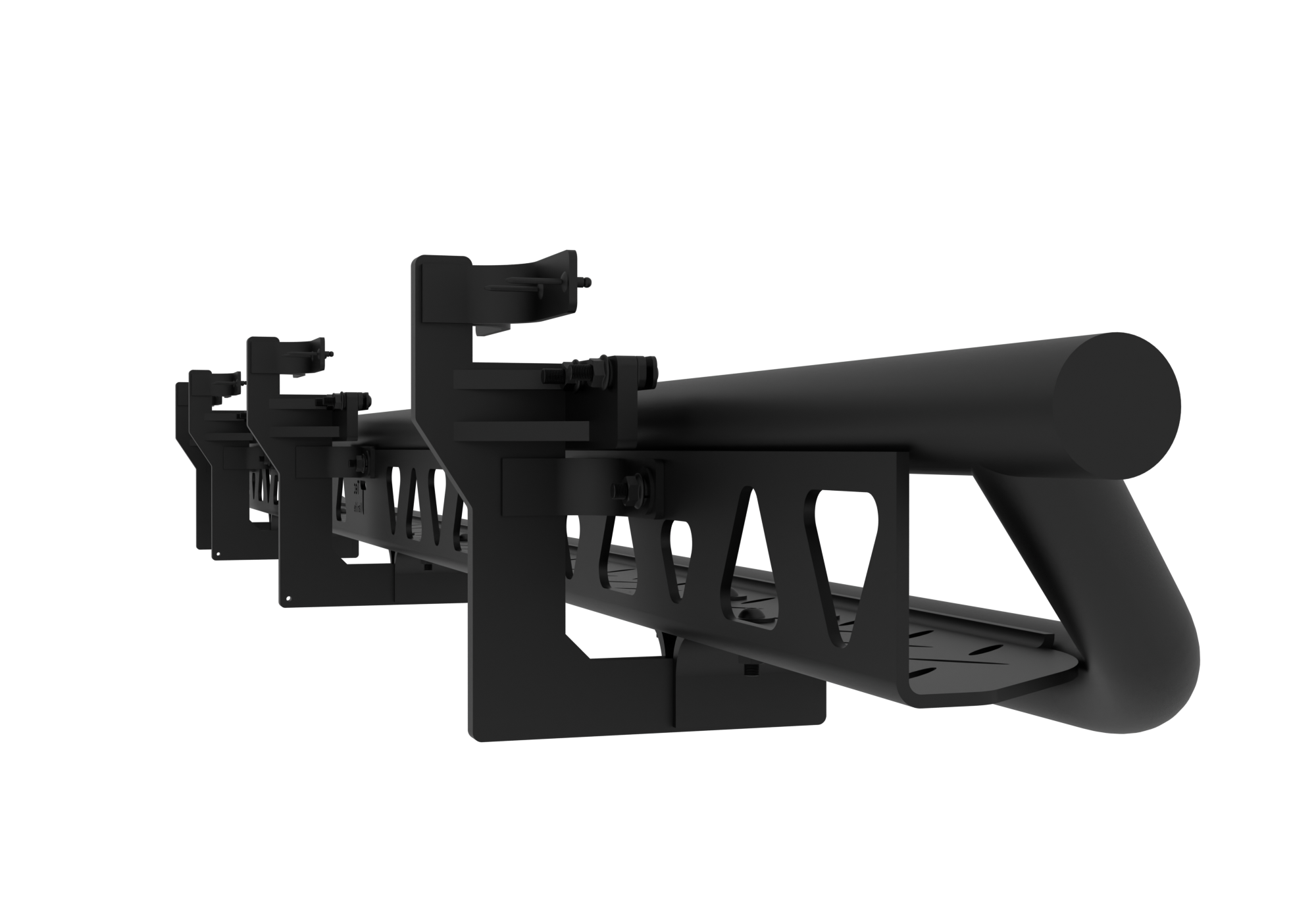

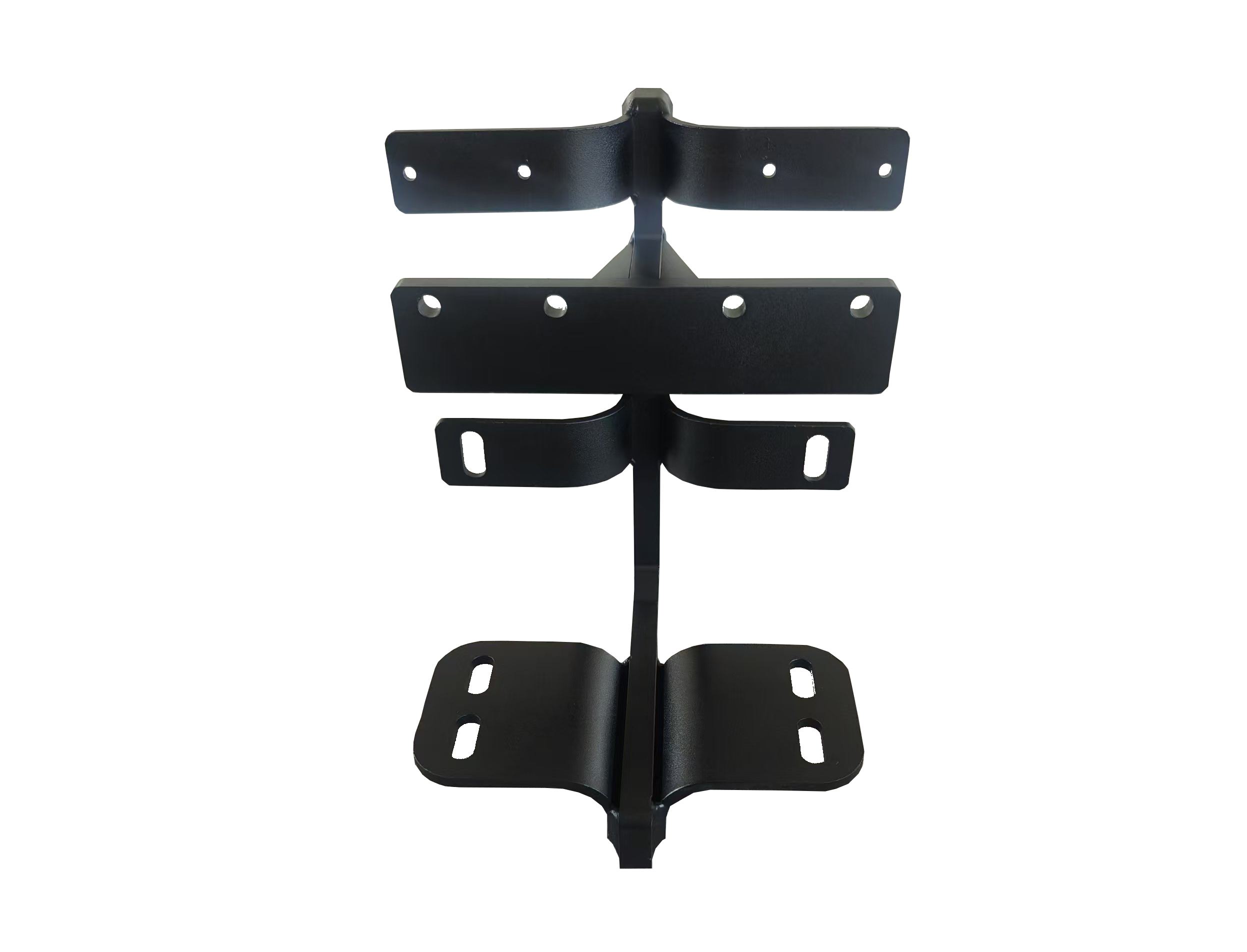

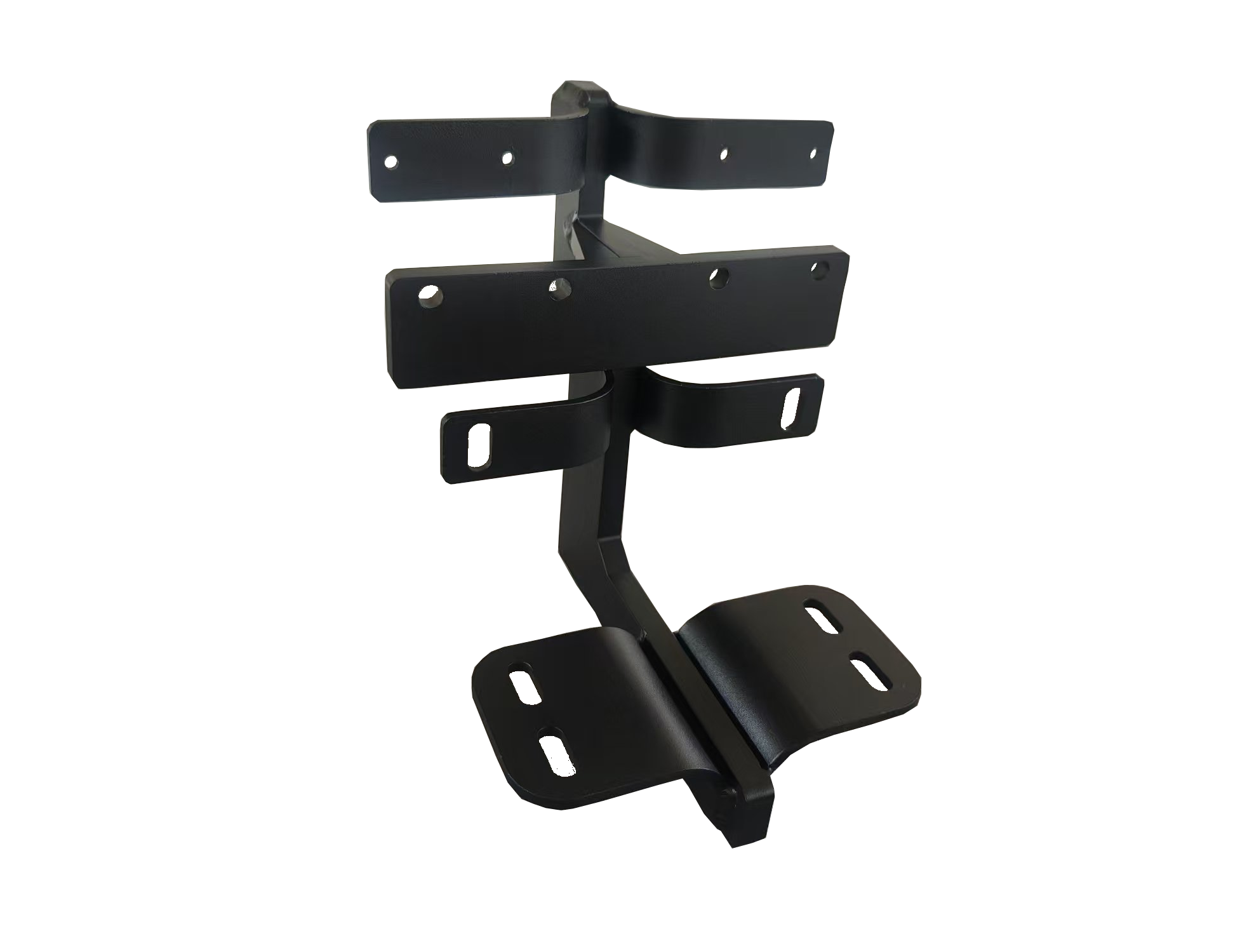

The boards are supported by welded (TIG) steel brackets designed for strength and durability. Each bracket incorporates bendable tabs that can be adjusted to match irregularities in the Sprinter’s undercoating, helping the system seat evenly along the body and maintain a secure fit at all mounting locations.
Installation is straightforward and does not require specialized tools. The lightweight construction makes the components easier to position and handle, allowing both DIY owners and professional installers to complete the setup efficiently once mounting points are prepared.
FAQ:
1. Which Sprinter models, wheelbases, and years are these drop down running boards compatible with?
They are compatible with all 2007+ 144" and 170" Sprinter models.
2. How do the running boards mount to the Sprinter chassis, and is any drilling or underbody preparation required?
The boards mount to brackets fixed to the lower side panel and inner side panel. Light drilling is required on the inner panel only. No underbody modification is needed.
3. Can one person install these running boards, what tools are needed, and how long does the installation typically take?
Installation can be completed by a single person. A drill and basic hand tools are required, and the typical installation time is approximately 2 hours.
4. How much ground clearance does the running board reduce once installed?
Ground clearance is reduced by approximately 6–8 inches (15–20 cm).
5. Will the running boards interfere with the sliding door when fully opened or closed?
No. They do not interfere with sliding door operation.
6. What is the weight capacity of the running boards, and how do they hold up to daily use?
The running boards have a weight capacity of approximately 400 lbs and are suitable for daily use.
Regular inspections and hardware checks are critical to keeping your running boards safe and reliable over the long term. After installation, recheck and retighten all mounting hardware at approximately 100 miles of driving, and then every 600 miles thereafter. At the same time, inspect the running boards, brackets, and mounting points for any looseness, damage, or corrosion every 600 miles or at least once a month, whichever comes first.
